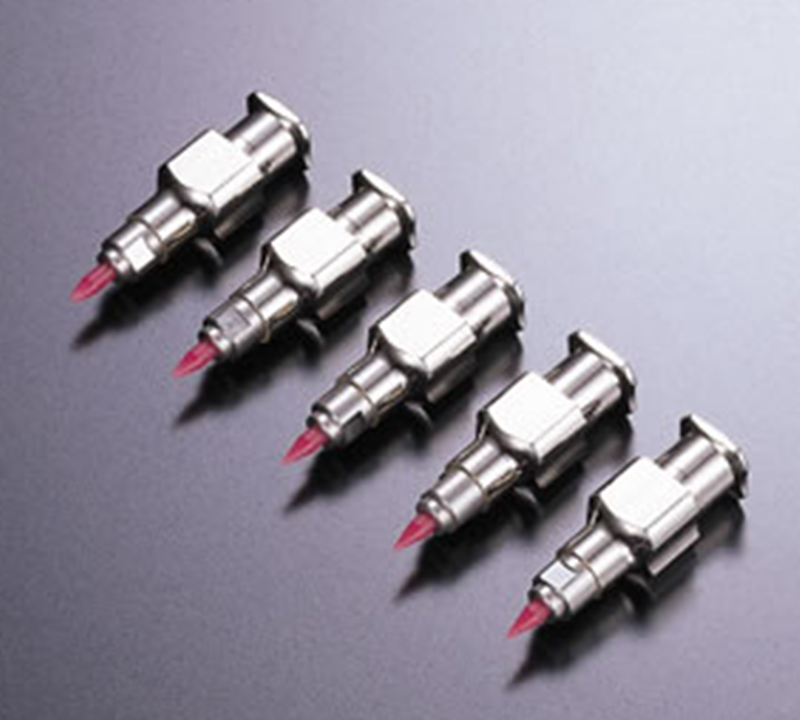

Super-fine nozzles Musashi FN
Micro-dispensing available from as small as φ10 μm onwards
Incorporation of these super-fine nozzles into MUSASHI dispensers implements super-fine dotting and ultra-precision drawing.
Needle base material :
Brass (Nickel plate) [Luer lock type] :
Stainless steel [Double thread screw type]
Incorporation of these super-fine nozzles into MUSASHI dispensers implements super-fine dotting and ultra-precision drawing.
Needle base material :
Brass (Nickel plate) [Luer lock type] :
Stainless steel [Double thread screw type]
- FN-[]N
- FN-[]ND
- FN-[]N-F
- FN-[]ND-F
| Luer lock Model | Double thread screw Model | Nozzle OD (ϕ) | Nozzle ID (ϕ) | Minimum Order Quantity |
|---|---|---|---|---|
| FN-0.6N | FN-0.6ND | 0.70 | 0.60 | 1 |
| FN-0.5N | FN-0.5ND | 0.60 | 0.50 | 1 |
| FN-0.4N | FN-0.4ND | 0.50 | 0.40 | 1 |
| FN-0.3N | FN-0.3ND | 0.40 | 0.30 | 1 |
| FN-0.25N | FN-0.25ND | 0.35 | 0.25 | 1 |
| FN-0.2N | FN-0.2ND | 0.30 | 0.20 | 1 |
| FN-0.15N | FN-0.15ND | 0.25 | 0.15 | 1 |
| FN-0.1N | FN-0.1ND | 0.20 | 0.10 | 1 |
| FN-0.05N | FN-0.05ND | 0.15 | 0.05 | 1 |
| FN-0.04N | FN-0.04ND | 0.14 | 0.04 | 1 |
| FN-0.03N | FN-0.03ND | 0.13 | 0.03 | 1 |
| FN-0.02N | FN-0.02ND | 0.12 | 0.02 | 1 |
| Luer lock Model | Double thread screw Model | Nozzle OD (ϕ) | Nozzle ID (ϕ) | Minimum Order Quantity |
|---|---|---|---|---|
| FN-0.60N-F | FN-0.60ND-F | 0.63 | 0.60 | 1 |
| FN-0.50N-F | FN-0.50ND-F | 0.53 | 0.50 | 1 |
| FN-0.40N-F | FN-0.40ND-F | 0.43 | 0.40 | 1 |
| FN-0.30N-F | FN-0.30ND-F | 0.33 | 0.30 | 1 |
| FN-0.25N-F | FN-0.25ND-F | 0.28 | 0.25 | 1 |
| FN-0.20N-F | FN-0.20ND-F | 0.23 | 0.20 | 1 |
| FN-0.15N-F | FN-0.15ND-F | 0.18 | 0.15 | 1 |
| FN-0.10N-F | FN-0.10ND-F | 0.13 | 0.10 | 1 |
| FN-0.05N-F | FN-0.05ND-F | 0.08 | 0.05 | 1 |
| FN-0.04N-F | FN-0.04ND-F | 0.07 | 0.04 | 1 |
| FN-0.03N-F | FN-0.03ND-F | 0.06 | 0.03 | 1 |
| FN-0.02N-F | FN-0.02ND-F | 0.05 | 0.02 | 1 |
