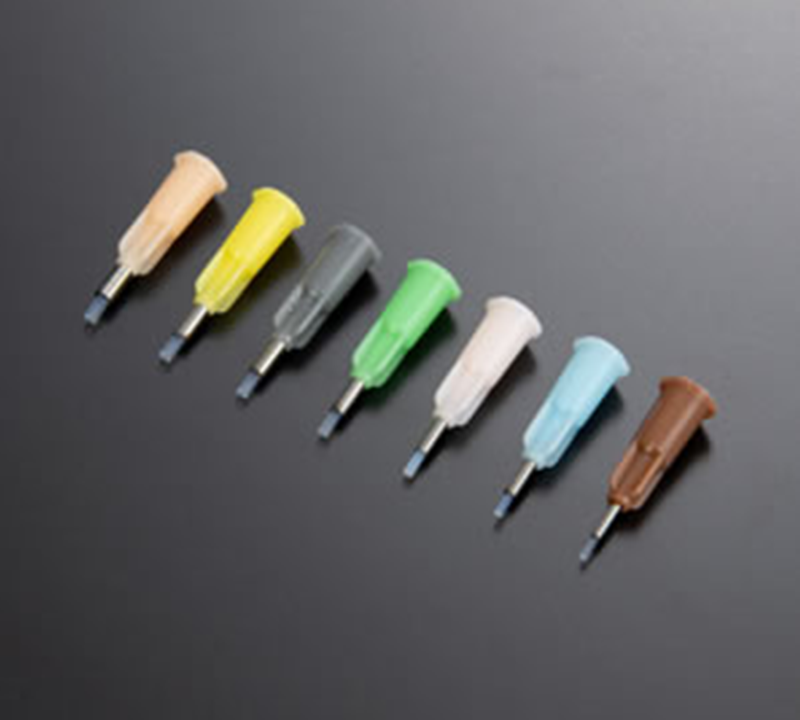

SUS guide PTFE nozzle Musashi TN
Excellent performance in high-precision dispensing of anaerobic fluid materials
Best suited for dispensing fluid materials that cannot be used with metal needles. Stainless steel guide is attached to prevent vibration in the needle tip.
Needle material: Fluorine resin
Guide material: Stainless steel
Needle base material: Polyacetal
Best suited for dispensing fluid materials that cannot be used with metal needles. Stainless steel guide is attached to prevent vibration in the needle tip.
Needle material: Fluorine resin
Guide material: Stainless steel
Needle base material: Polyacetal
- TN-[]G-○-L[]G-△△L
| Gauge | Model | SUS guide OD (φ) | PTFE nozzle ID (φ) | Color | Minimum Order Quantity |
|---|---|---|---|---|---|
| 16 | TN-16G-○-L13G-△△L | 2.42 | 1.07 | ● Ivory | 1 |
| 17 | TN-17G-○-L14G-△△L | 2.01 | 0.96 | ● Yellow | 1 |
| 18 | TN-18G-○-L14G-△△L | 2.01 | 0.86 | ● Gray | 1 |
| 19 | TN-19G-○-L15G-△△L | 1.82 | 0.68 | ● Light green | 1 |
| 20 | TN-20G-○-L16G-△△L | 1.67 | 0.56 | ● Light pink | 1 |
| 21 | TN-21G-○-L17G-△△L | 1.56 | 0.46 | ● Light blue | 1 |
| 22 | TN-22G-○-L18G-△△L | 1.22 | 0.38 | ● Brown | 1 |
Note:
1.
○○ shows the PTFE nozzle length between 4 mm and 50 mm
△△ shows the SUS guide length between 3 mm and 49 mm
2.
Specify the length of SUS guide 1 mm shorter than the PTFE nozzle. e.g., If you want to order a 20 mm-long 19G PTFE nozzle, the item number is “TN-19G20L-15G-19L”.

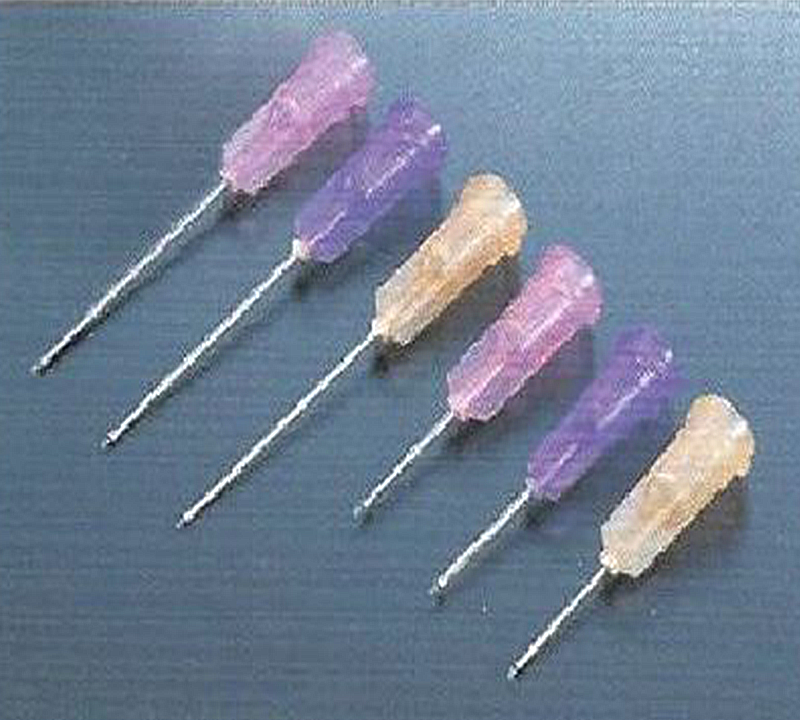

Ultra-fine needle type
| Needle length 13.7 mm | Needle length 26.4 mm | PTFE nozzle OD (φ) | PTFE nozzle ID (φ) | Color | Minimum Order Quantity |
|---|---|---|---|---|---|
| TN-0.3-13.7-SUSG | TN-0.3-26.4-SUSG | 0.5 | 0.3 | ● Pink | 1 |
| TN-0.2-13.7-SUSG | TN-0.2-26.4-SUSG | 0.4 | 0.2 | ● Purple | 1 |
| TN-0.1-13.7-SUSG | TN-0.1-26.4-SUSG | 0.3 | 0.1 | ● Orange | 1 |
Guide material: Stainless steel
Needle base material: Polypropylene
