Dispensing
Syringe Barrel Adapters
Part No.：3cc-7012341 5cc-7012054 10cc-7012339 30/55/70cc-7012338
Adapters assemblies connect the Nordson EFD Optimum® syringe barrels to the air output of the fluid dispenser unit.
Adapters assemblies connect the Nordson EFD Optimum® syringe barrels to the air output of the fluid dispenser unit.

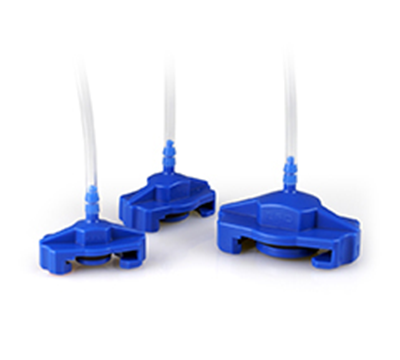

Syringe Barrel Adapters
A Nordson EFD adapter assembly connects Nordson EFD Optimum® syringe barrels to the air output of a fluid dispenser unit.
Designed with a positive safety locking action to prevent accidental disengagement, our syringe barrel adapters are easy to install and remove.
Each adapter assembly is precision molded for secure attachment to the syringe barrel with minimal effort, making its connection to the air output of a fluid dispensing unit fast and seamless.
General purpose and ESD-safe adapter assemblies are available for 3cc, 5cc, 10cc, 30cc, 55cc, and 70cc syringe barrels.
Quicksilver™ adapter assemblies allow faster cycle speeds for improved dispensing performance and are for use with UltimusPlus Dispensers.
Part Numbers
A Nordson EFD adapter assembly connects Nordson EFD Optimum® syringe barrels to the air output of a fluid dispenser unit.
Designed with a positive safety locking action to prevent accidental disengagement, our syringe barrel adapters are easy to install and remove.
Each adapter assembly is precision molded for secure attachment to the syringe barrel with minimal effort, making its connection to the air output of a fluid dispensing unit fast and seamless.
General purpose and ESD-safe adapter assemblies are available for 3cc, 5cc, 10cc, 30cc, 55cc, and 70cc syringe barrels.
Quicksilver™ adapter assemblies allow faster cycle speeds for improved dispensing performance and are for use with UltimusPlus Dispensers.
Part Numbers
| Adapter Assemblies | ||||||
| Size | Blue 0.9 m (3 ft) Hose |
Blue 1.8 m (6 ft) Hose |
Blue 0.9 m (3 ft) Hose w/ filter trap |
Quicksilver 0.9 m (3 ft) Hose |
Quicksilver 1.8 m (6 ft) Hose |
|
| 3cc | 7012341 | 7012059 | 7012063 | 7364487 | 7364491 | |
| 5cc | 7012054 | 7012058 | 7012062 | 7364486 | 7364490 | |
| 10cc | 7012339 | 7012057 | 7012061 | 7394485 | 7364489 | |
| 30/55/70cc | 7012338 | 7012056 | 7012060 | 7364484 | 7364488 | |
| Blue molded one-piece, acetal adapter head with NBR O-ring, flexible polyurethane air hose (5/32" OD X 3/32" ID), male quick-connect, and safety clip. For general use. Quicksilver for use with UltimusPlus dispensers. See next page for ESD-Safe and Unity adapters. | ||||||
