Syringe head capSyringe tip cap Musashi HC NC

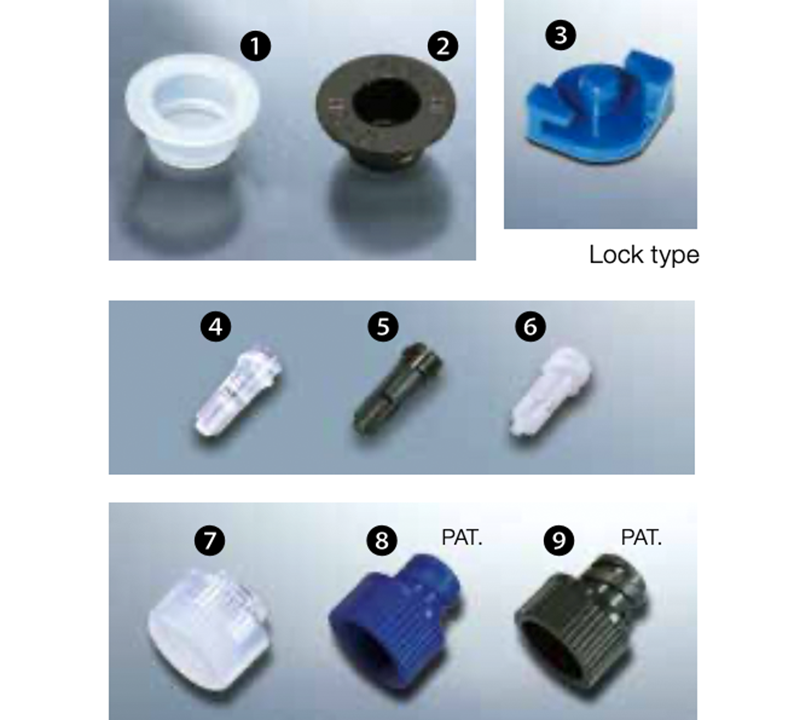

These caps are used to seal the head and tail of the syringe. Material: Polyethylene for 1. , 2. , 3. , 7. , 8.  and 9. .........Polypropylene for 4. and 5..........PBT for 6.
Syringe head cap (former: head cap)

Syringe capacity	1. For ordinary materials	2. For UV materials	3. For ordinary materials (with hook)	Minimum Order Quantity
	Model	Model	Model
1 mL	-	-	HC-1E-H	50
3 mL	HC-3E	HC-3EU-B	-	50
5 mL	HC-5E	HC-5EU-B	-	50
10 mL	HC-10C	HC-10U-B	-	50
20 to 70 mL	HC-50E	HC-50EU-B	-	50
100 mL	HC-100E	-	-	50

Syringe tip cap (normal type) (former: needle cap)

Syringe capacity	4. For ordinary materials	5. For UV materials	6.For heat-resistant materials	Minimum Order Quantity
	Model	Model	Model
Common for all sizes	NC-3E	NC-3EU-B	NC-3FH	50

Syringe tip cap (knurled type) (former: needle cap)

Syringe capacity	7. For ordinary materials	8. For UV materials	9.For heat-resistant materials	Minimum Order Quantity
	Model	Model	Model
Common for all sizes	NC-5E	NC-7E	NC-7EU-B	50
