Component Forming & Counting

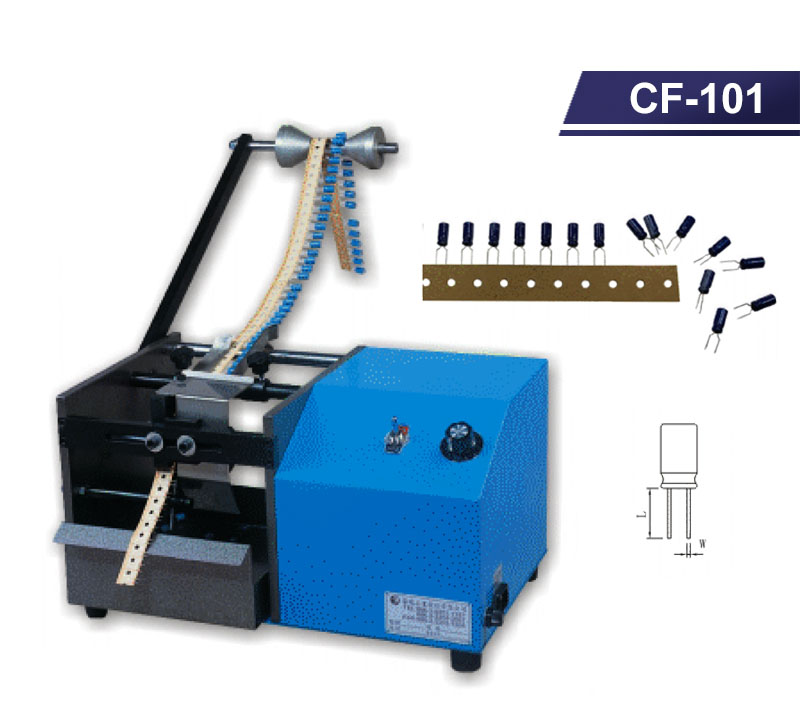

Taped Radial Lead Trimmer
Power : 110V/60Hz;220V/50Hz
Dimension : 520(L)x 380(W)x300(H)mm
Net Weight : 24 kgs
Capacity : 60,000 pcs/Hour
Dimension : 520(L)x 380(W)x300(H)mm
Net Weight : 24 kgs
Capacity : 60,000 pcs/Hour
- Quiet, high performance motor with adjustable speed.
- Cut off single-side taped radial Resistor, Capacitor, Crystal and similar components.
- Suitable for single bandoleer in roller / reel or AMON box Component counter is an optional accessory. Please advise upon the order.
- Compact, suitable for shortening lead operation in precise dimensions.
- CF-101/HCF-101: for 12.7 mm paper tape bare hole pitch (A) ; CF-101S/HCF-101 for 15 mm paper tape bare hole pitch (A).
| L | Leadlengh | 3~20 m/m |
| W | Wire | 0.4~1.0 m/m |
