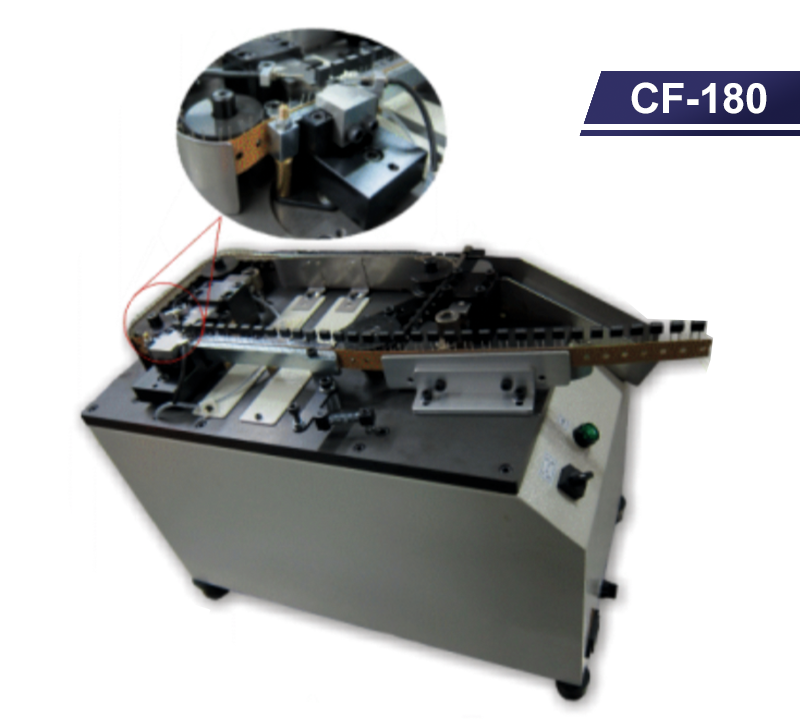

Tapped Radial Component Feeder
Power：110V/60Hz；220V/50Hz
Dimension：500(L) x 250(W) x 350(H) mm
Net Weight：23 kgs
Capacity：one after one
Dimension：500(L) x 250(W) x 350(H) mm
Net Weight：23 kgs
Capacity：one after one
- Design for the Robotic Arm which can pick and insert tape parts right after cut. Fulfill the no-waste SMT production ine.
- Suitable for taped racdial parts in ammo box or reel.
- Two spec options: paper tape bare hole pitch (A) in 12.7mm and 15mm.
CF-180S: (A) = 15mm
- Max. cut wire diameter: 0.8mm After-cut lead length is adjustable 2.5-4.0mm.
