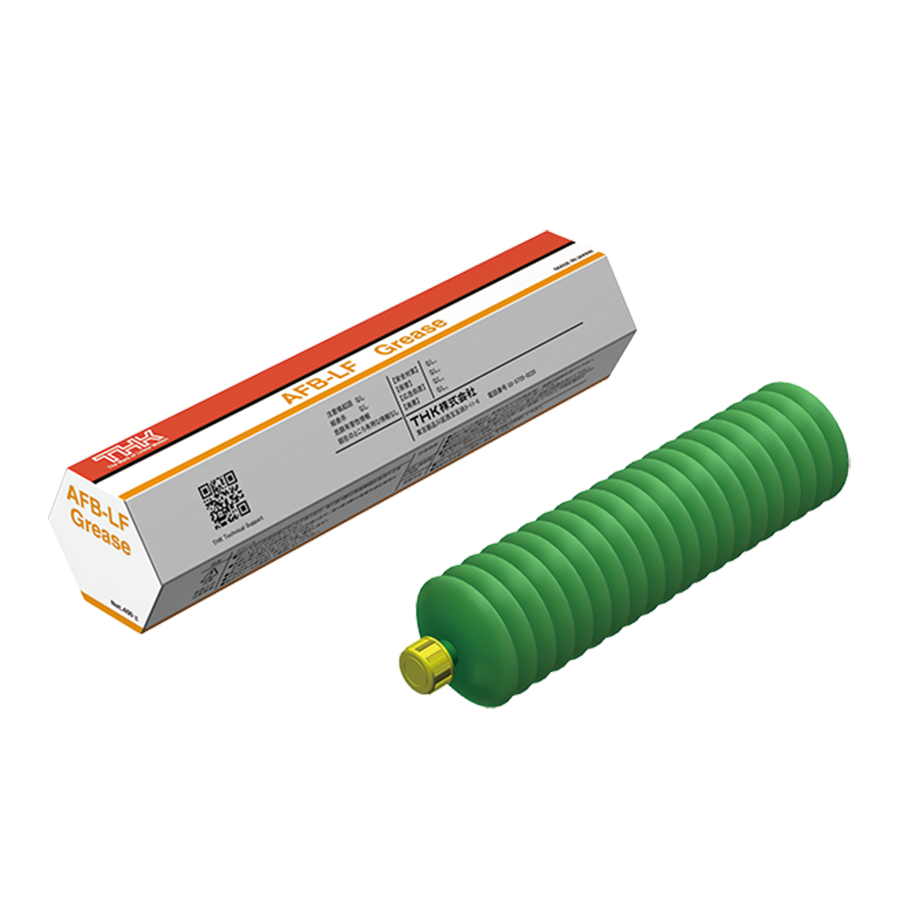

THK Original Grease AFB-LF Grease

AFB-LF Grease is a general-purpose grease that provides excellent extreme pressure performance and mechanical stability properties through the use of a refi ned mineral oil base oil and a lithiumbased consistency enhancer.

Features

• Extreme pressure resistance

The action of the special additives provides higher wear resistance and extreme pressure resistance than other lithium-based greases available on the market.

• Mechanical stability

AFB-LF Grease is not easily softened and demonstrates excellent mechanical stability even when used for a long period of time.

• Long service life

It provides many times the lubrication life of general lithium soap-based greases. As a result, it offers a lower maintenance workload and greater economy due to the longer intervals between greasing.

Representative Physical Properties

Item		Representative value	Test method
Consistency enhancer		Lithium-based
Base oil		Refined mineral oil
Base oil kinematic viscosity: mm2/s(40℃)		170	JIS K 2220 23
Worked penetration (25°C, 60 W)		275	JIS K 2220 7
Mixing stability (100,000 W)		345	JIS K 2220 15
Dropping point: °C		193	JIS K 2220 8
Evaporation amount: mass% (99°C, 22 h)		0.4	JIS K 2220 10
Oil separation rate: mass% (100°C, 24 h)		0.6	JIS K 2220 11
Copper plate corrosion (B method, 100°C, 24 h)		Accepted	JIS K 2220 9
Low-temperature torque: mN-m (‒20°C)	Starting	130	JIS K 2220 18
	Rotational	51
4-ball testing (welding load): N		3089	ASTM D2596
Service temperature range: °C		‒15 to 100
Color		Brownish yellow

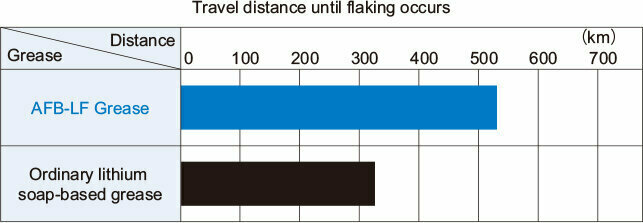

Comparison of Grease Service Life Data

Item	Description
Test products	HSR25CA1SS+600L
Load	9.8 kN/block
Stroke	350mm
Speed	30m/min(MAX)
Time constant	200ms
Greasing quantity	4cm3 (initial lubrication only)
