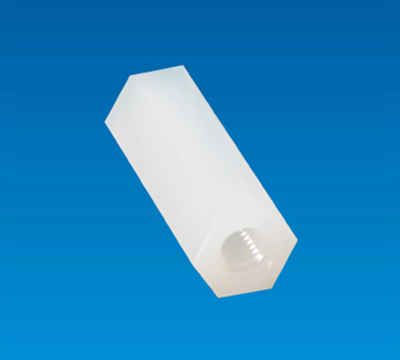

THREADED HEX SPACER SUPPORT H2M-6

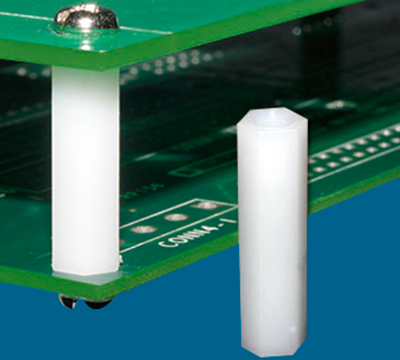

- Joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
THREADED HEX SPACER SUPPORT H2M-6
FEATURES
SPECIFICATION
FEATURES
- Joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
SPECIFICATION
- MATERIAL: NYLON 66(UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- OPTIONAL MATERIAL:
- POM (94HB FLAMMABILITY)

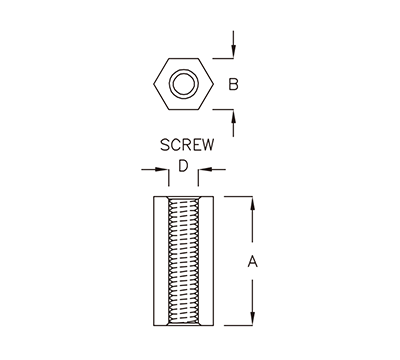

| PART NO | A | B | C | PACKAGE |
|---|---|---|---|---|
| H2M-6 | 6.0 | 4.9 | M2.6 | 1000 |
| H-5KC | 5.0 | 5.4 | M3 | 2000 |
| H-6 | 6.4 | 5.5 | M3 | 1000 |
| H-7 | 7.0 | 5.5 | ||
| H-8 | 8.0 | 5.5 | ||
| H-9 | 9.0 | 5.5 | ||
| H-10S | 10.0 | 5.5 | ||
| H-10 | 10.5 | 5.5 | ||
| H-11 | 11.0 | 5.5 | ||
| H-12 | 12.0 | 5.5 | ||
| H-13 | 12.8 | 5.5 | ||
| H-14 | 14.0 | 5.5 | ||
| H-15 | 15.0 | 5.5 | ||
| H-16 | 16.0 | 5.5 | ||
| H-17 | 17.0 | 5.5 | ||
| H-18 | 18.2 | 5.5 | ||
| H-20 | 20.1 | 5.5 | ||
| H-22 | 22.0 | 5.5 | ||
| H-24 | 24.0 | 5.5 | 500 | |
| H-25 | 25.0 | 5.5 | ||
| H-26 | 26.3 | 5.5 | ||
| H-28 | 27.8 | 5.5 | ||
| H-30 | 30.0 | 5.5 | ||
| H4-36 | 36.0 | 8.0 | M4 |
