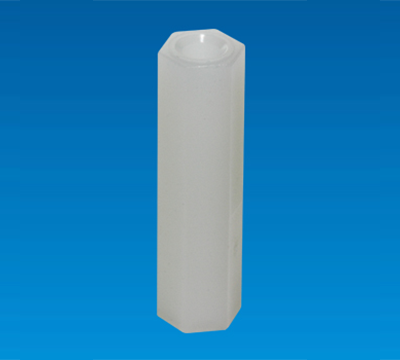

THREADED HEX SPACER SUPPORT HU4-406A

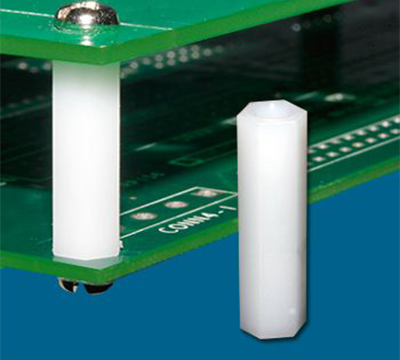

- Joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
THREADED HEX SPACER SUPPORT HU4-406A
FEATURES
SPECIFICATION
FEATURES
- Joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

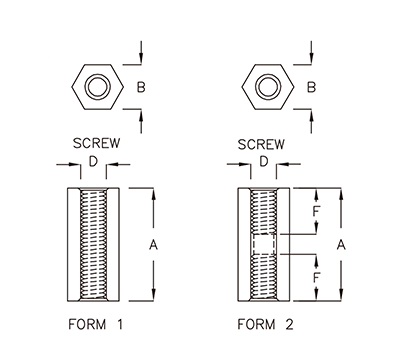

| PART NO | A | B | D | F | FORM | PACKAGE |
|---|---|---|---|---|---|---|
| HU4-406A | 6.35 | 4.75 | #4-40 | ⁄ | 1 | 1000 |
| HU4-409A | 9.53 | 4.75 | #4-40 | ⁄ | 1 | |
| HU4-412A | 12.7 | 4.75 | #4-40 | ⁄ | 1 | |
| HU4-415A | 15.9 | 4.75 | #4-40 | 6.0 | 2 | |
| HU4-419A | 19.05 | 4.75 | #4-40 | 8.0 | 2 | |
| HU4-606C | 6.35 | 6.35 | #4-40 | ⁄ | 1 | |
| HU4-609C | 9.53 | 6.35 | #4-40 | ⁄ | 1 | |
| HU4-611C | 11.1 | 6.35 | #4-40 | / | 1 | |
| HU4-612C | 12.7 | 6.35 | #4-40 | ⁄ | 1 | |
| HU4-615C | 15.9 | 6.35 | #4-40 | 6.0 | 2 | |
| HU4-619C | 19.05 | 6.35 | #4-40 | 8.0 | 2 | |
| HU4-625C | 25.4 | 6.35 | #4-40 | 8.0 | 2 | |
| HU6-406D | 6.35 | 4.75 | #6-32 | ⁄ | 1 | 1000 |
| HU6-409D | 9.53 | 4.75 | #6-32 | ⁄ | 1 | |
| HU6-412D |
12.7 |
4.75 | #6-32 | ⁄ | 1 | |
| HU6-415D | 15.9 | 4.75 | #6-32 | 6.0 | 2 | |
| HU6-419D | 19.05 | 4.75 | #6-32 | 8.0 | 2 | |
| HU6-606H | 6.35 | 6.35 | #6-32 | ⁄ | 1 | |
| HU6-609H | 9.53 | 6.35 | #6-32 | ⁄ | 1 | |
| HU6-612H | 12.7 | 6.35 | #6-32 | ⁄ | 1 | |
| HU6-615H | 15.9 | 6.35 | #6-32 | 6.0 | 2 | |
| HU6-619H | 19.05 | 6.35 | #6-32 | 8.0 | 2 | |
| HU6-625H | 25.4 | 6.35 | #6-32 | 8.0 | 2 | 500 |
