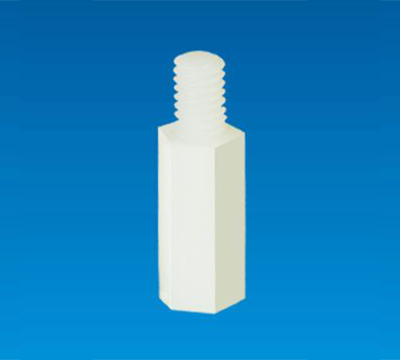

THREADED HEX SPACER SUPPORT WITH BOLT THU4-406C

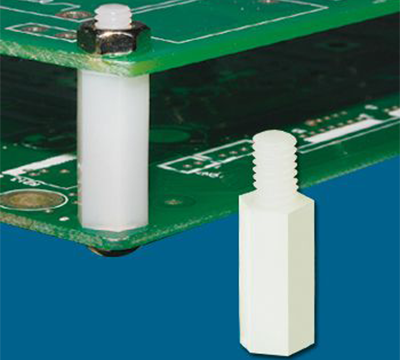

- Joint PCB with Chassis and other board.
- Provides distance,space and support between Circuit boards.
- Screw design,associate with nut to fasten the joint board
THREADED HEX SPACER SUPPORT WITH BOLT THU4-406C
FEATURES
SPECIFICATION
FEATURES
- Joint PCB with Chassis and other board.
- Provides distance,space and support between Circuit boards.
- Screw design,associate with nut to fasten the joint board
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

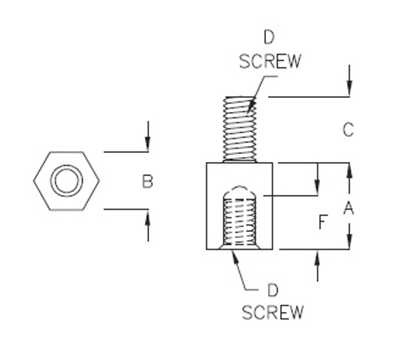

- D: SCREW
| PART NO | A | B | C | D | F | PACKAGE |
|---|---|---|---|---|---|---|
| THU4-406C | 6.35 | 4.75 | 4.75 | #4-40 | 4.75 | 1000 |
| THU4-409C | 9.53 | |||||
| THU4-412C | 12.7 | |||||
| THU4-415C | 15.9 | |||||
| THU4-419C | 19.05 | 4.75 | 4.75 | #4-40 | 4.75 | 500 |
| THU4-425C | 25.4 | |||||
| THU4-606A | 6.35 | 6.35 | 4.75 | #4-40 | 4.75 | 1000 |
| THU4-609A | 9.53 | |||||
| THU4-612A | 12.7 | |||||
| THU4-615A | 15.9 | |||||
| THU4-619A | 19.05 | 6.35 | 4.75 | #4-40 | 4.75 | 500 |
| THU4-625A | 25.4 | |||||
| THU6-406H | 6.35 | 4.75 | 6.35 | #6-32 | 4.75 | 1000 |
| THU6-409H | 9.53 | 4.75 | 6.35 | #6-32 | 6.35 | |
| THU6-412H | 12.7 | |||||
| THU6-415H | 15.9 | |||||
| THU6-419H | 19.05 | 4.75 | 6.35 | #6-32 | 6.35 | 500 |
| THU6-425H | 25.4 | |||||
| THU6-606D | 6.35 | 6.35 | 6.35 | #6-32 | 4.75 | 1000 |
| THU6-609D | 9.53 | 6.35 | 6.35 | #6-32 | 6.35 | |
| THU6-612D | 12.7 | |||||
| THU6-615D | 15.9 | |||||
| THU6-619D | 19.05 | 6.35 | 6.35 | #6-32 | 6.35 | 500 |
| THU6-625D | 25.4 |
