Adhesive Sealant & Lubricant

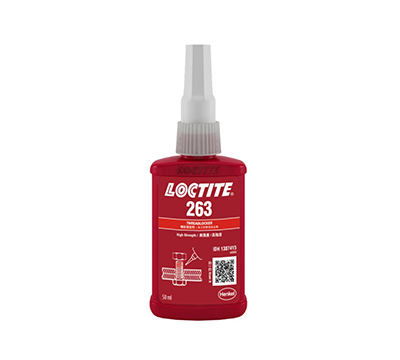

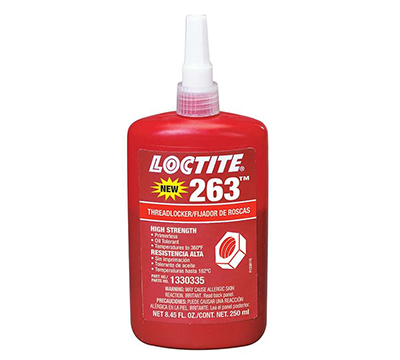

Threadlocking adhesive LOCTITE 263
- Particularly suited for heavy duty applications such as studs into motor housings where high strength is required
- Prevents loosening and leakage from shock and vibration
- Designed for the permanent locking and sealing of threaded fasteners
- Provides robust curing performance
- Offers high temperature performance and oil tolerance
Dual cure, acrylic dimethacrylate ester fluorescent threadlocker designed for the permanent locking and sealing of threaded fasteners.
LOCTITE® 263 is a red, dual cure, acrylic dimethacrylate ester fluorescent threadlocker designed for the permanent locking and sealing of threaded fasteners. It cures between close fitting metal surfaces and prevents loosening and leakage from shock and vibration. It works on active metals (e.g. brass, copper) and passive substrates such as stainless steel and plated surfaces.
Technical Information
LOCTITE® 263 is a red, dual cure, acrylic dimethacrylate ester fluorescent threadlocker designed for the permanent locking and sealing of threaded fasteners. It cures between close fitting metal surfaces and prevents loosening and leakage from shock and vibration. It works on active metals (e.g. brass, copper) and passive substrates such as stainless steel and plated surfaces.
Technical Information
| Agency Approvals / Specifications | NSF/ANSI, Norm 61 |
| Application Method | Dispense System, Manual |
| Application Temperature | -65.0 - 360.0 °F (-55.0 - 180.0 °C ) |
| Applications | Threadlocking |
| Breakaway Torque, M10 Steel Nuts/Bolts | 33.0 N·m (290.0 in./lb. ) |
| Color | Red |
| Cure Type | Anaerobic Cure |
| Fixture Time | 10.0 min. |
| Key Characteristics | General Purpose, Strength: High Strength, Fluorescent, Disassembly: Disassembly with Heat, Oil Tolerant, Primerless |
| Physical Form | Liquid |
| Prevail Torque, M10 Steel Nuts/Bolts | 33.0 N·m (290.0 in./lb. ) |
| Specific Gravity, @ 25.0 °C | 1.1 |
| Substrates | Metal, Metal: Passive Metal |
| Technology | Acrylic |
| Viscosity, 20 RPM | 500.0 mPa·s (cP) |
