Energy Meter & Current Transformer

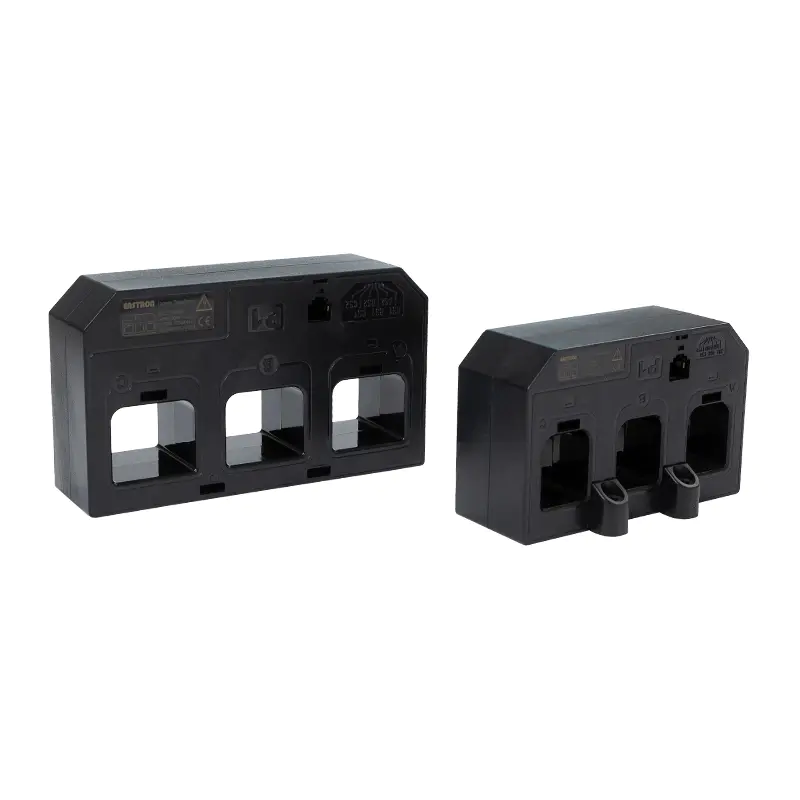

Three Phase Rj12-3 Mv/ma Output 3-in-1 Current Sensor For Easy Click System Eastron ESCT-3RJ Series (3-in-1)
- RJ12 plug in technology
- Easy Installation & Error Free
- Wide range of Primary Current
- Cost effective three phase moulded case
- Available for both busbar and Din Rail Mounting
| Model |
Primary Current |
Secondary Output |
Accuracy |
| ESCT-RJ325 |
60A |
100mA / 100mV / 333mV |
Clase 0.5 or 1 |
| 100A |
100mA / 100mV / 333mV |
Clase 0.5 or 1 |
| 120A |
100mA / 100mV / 333mV |
Clase 0.5 or 1 |
| 125A |
100mA / 100mV / 333mV |
Clase 0.5 or 1 |
| 150A |
100mA / 100mV / 333mV |
Clase 0.5 or 1 |
| 160A |
100mA / 100mV / 333mV |
Clase 0.5 or 1 |
| 200A |
100mA / 100mV / 333mV |
Clase 0.5 or 1 |
| ESCT-RJ335 |
60A |
100mA / 100mV / 333mV |
Clase 0.5 or 1 |
| 125A |
100mA / 100mV / 333mV |
Clase 0.5 or 1 |
| 150A |
100mA / 100mV / 333mV |
Clase 0.5 or 1 |
| 200A |
100mA / 100mV / 333mV |
Clase 0.5 or 1 |
| 250A |
100mA / 100mV / 333mV |
Clase 0.5 or 1 |
| ESCT-RJ345 |
250A |
100mA / 100mV / 333mV |
Clase 0.5 or 1 |
| 300A |
100mA / 100mV / 333mV |
Clase 0.5 or 1 |
| 400A |
100mA / 100mV / 333mV |
Clase 0.5 or 1 |
| 500A |
100mA / 100mV / 333mV |
Clase 0.5 or 1 |
| 600A |
100mA / 100mV / 333mV |
Clase 0.5 or 1 |
| 630A |
100mA / 100mV / 333mV |
Clase 0.5 or 1 |
| ESCT-RJ370 |
600A |
100mA / 100mV / 333mV |
Clase 0.5 or 1 |
| 630A |
100mA / 100mV / 333mV |
Clase 0.5 or 1 |
| 800A |
100mA / 100mV / 333mV |
Clase 0.5 or 1 |
| 1000A |
100mA / 100mV / 333mV |
Clase 0.5 or 1 |
| 1200A |
100mA / 100mV / 333mV |
Clase 0.5 or 1 |
