Screwing

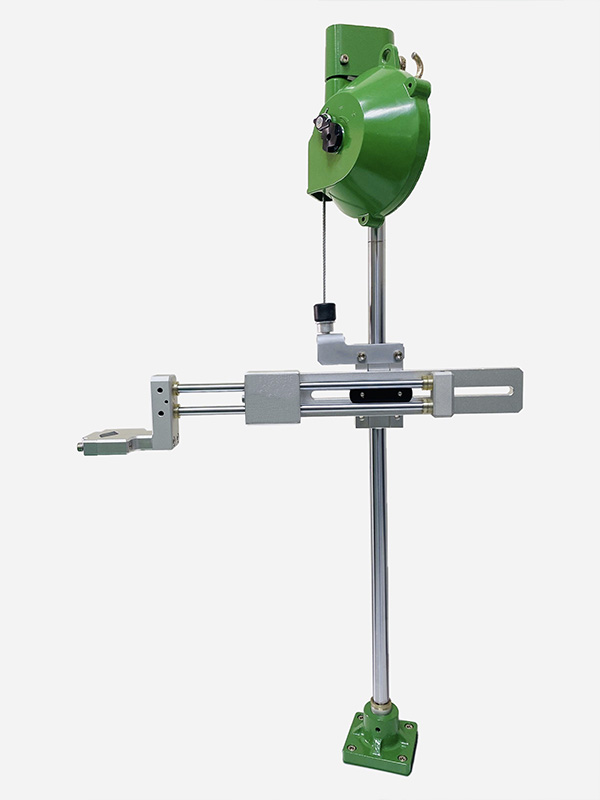

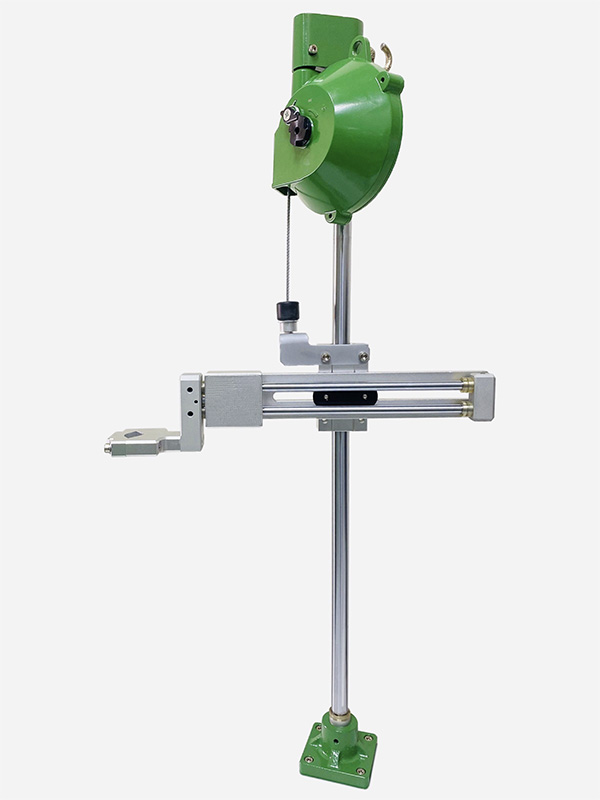

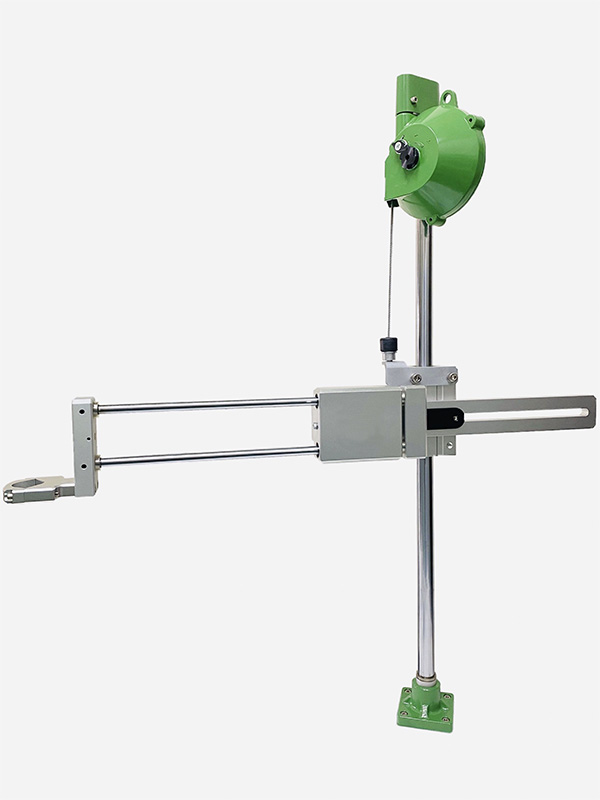

Torque Linear Arm A300S
1. Absorb the momentary torque of the tool and protect the wrist.
2. Reduce weight burden and make operation less fatigue.
3. Free adjustment up and down, and freely rotate 360 degrees horizontally.
4. Even continuous operation can maintain high precision operation.
2. Reduce weight burden and make operation less fatigue.
3. Free adjustment up and down, and freely rotate 360 degrees horizontally.
4. Even continuous operation can maintain high precision operation.
Feature
Specification
Applications
Accessory
C type table clip. Automatic Screw horizontal seat (A series)
- Torque Reaction Arm is designed to avoid repetitive work and excessive use of arm injuries in daily work. We provide Torque Reaction Arm to improve the ergonomic manufacturing process to eliminate instant torque and weight loads
- After clamping the screwdriver, the Torque Reaction Arm can be operated back and forth, left and right, up and down, and can rotate freely at 360°. It can always support the screwdriver. The maximum working diameter is 1122mm. Various screw locking operations can be carried out within the range to reduce work The failure rate ensures that the screwdriver locks the screws at a vertical angle, improves the quality of screw locking, and reduces product quality problems such as operator errors and defective locking screws.
- This Torque Reaction Arm can effectively reduce the space requirement of the workplace.
- With the help of the spring lifting force of the Spring Balancer, the suspended arm frame is in a weightless state, which reduces the labor status of personnel, improves labor production efficiency, and creates a safe and efficient working environment.
- It can be directly fixed on the work surface (recommended) and a C-shaped table clamp is provided, two installation methods.

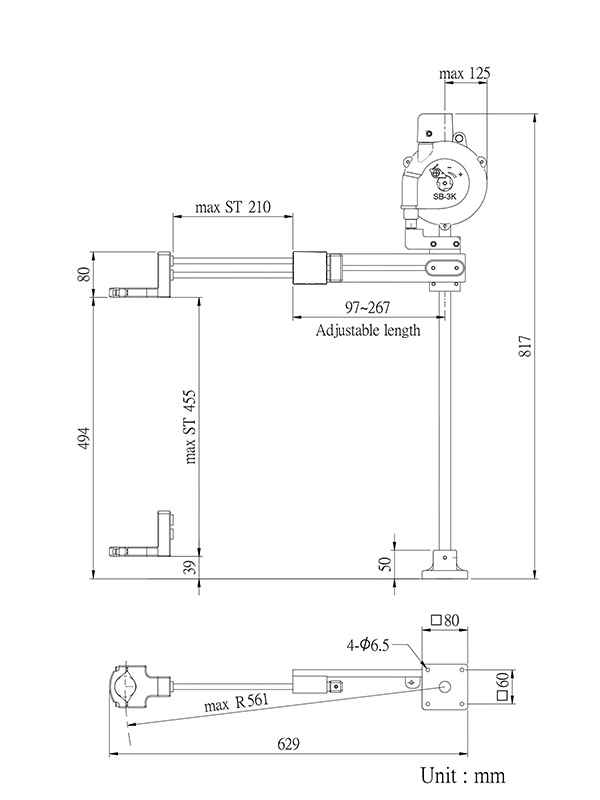

Specification
- Maximum working radius: R 561 mm
- Vertical maximum stroke: 455 mm
Applications
- Screwdriving.
- Drilling and Tapping.
- Automatic Screw Feeding.
- Impact Wrenches.
- Impact Tools.
- Pulse Tools.
- C type table clip.
- Automatic Screw horizontal seat. (A series)
Accessory
C type table clip. Automatic Screw horizontal seat (A series)
