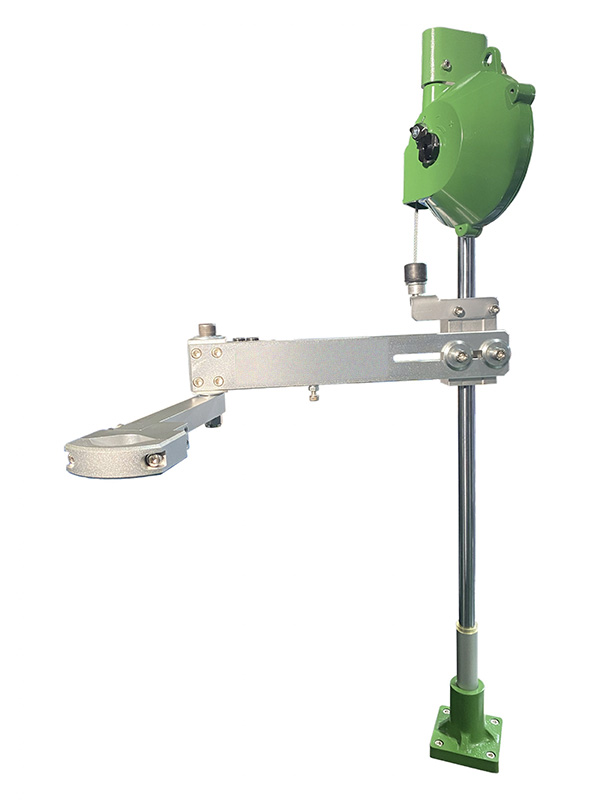

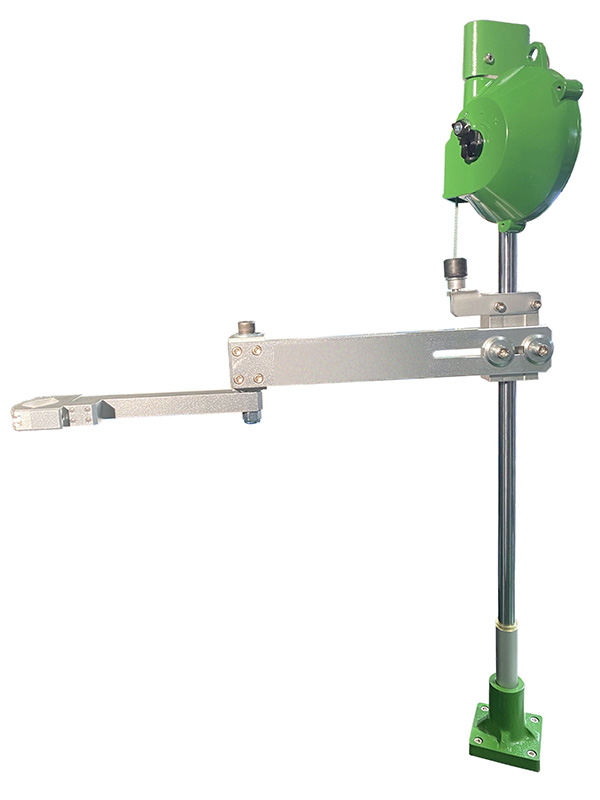

Torque Reaction Arm R350

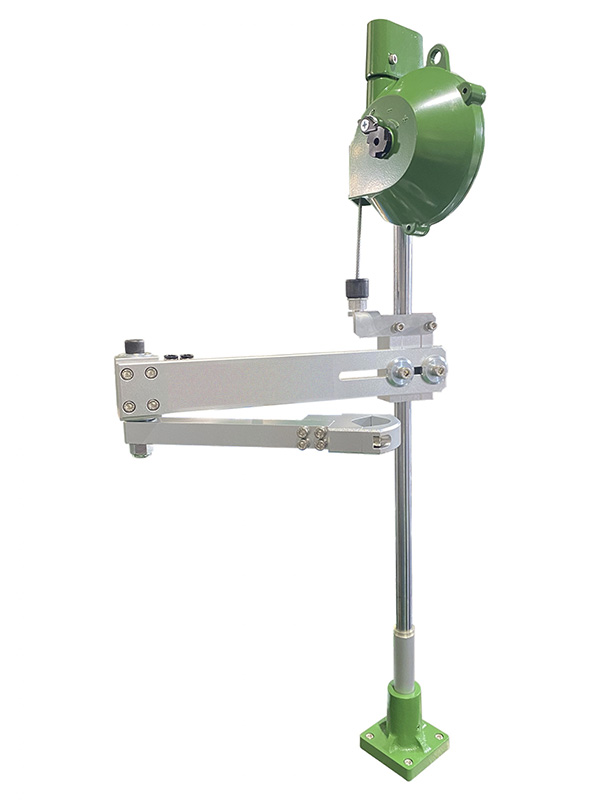

R350 Torque Reaction Arm has a 505mm work radius from the spindle base. With 365 degree rotation, R350 provides big work area. Meanwhile, its bendable arm design provide less conflict with other operator.
R350A is for pneumatic tools only. And, R350AE is both for electric and pneumatic screwdriver.
Feature
It is designed to avoid for injuries caused by repetitive work and overusing the arm can occur in daily work activities. We provide the opportunity to implement ergonomic improvements to the manufacturing process. This torque reaction arm removes torque twisting and weight loading to create a safe work environment.
Specification
1. Maintains tool in a constant vertical position.
2. Exclusive height adjustment.
3. 360° swivel.
Accessory
C type table clip. Automatic Screw horizontal seat (R series)
It is designed to avoid for injuries caused by repetitive work and overusing the arm can occur in daily work activities. We provide the opportunity to implement ergonomic improvements to the manufacturing process. This torque reaction arm removes torque twisting and weight loading to create a safe work environment.
Specification
1. Maintains tool in a constant vertical position.
2. Exclusive height adjustment.
3. 360° swivel.
| Model No. | R350A | R350AE |

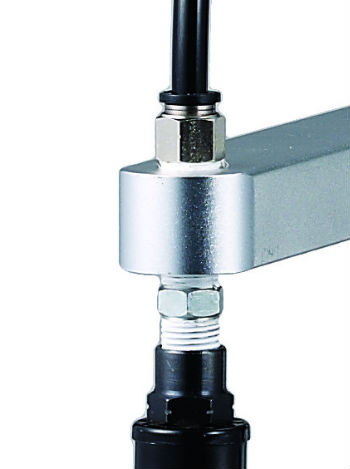

| Tool Installment | Air Connector(A Type) |
Clamp(AE Type) |
| Max. Working Area | R508 | R508 |
| Vertical Stroke | 370 mm | 370 mm |
| Screwdriver Type | Pneumatic | Electric / Pneumatic |
| Screwdriver Weight | < 1 kgs | < 0.8 kgs |
Accessory
C type table clip. Automatic Screw horizontal seat (R series)
