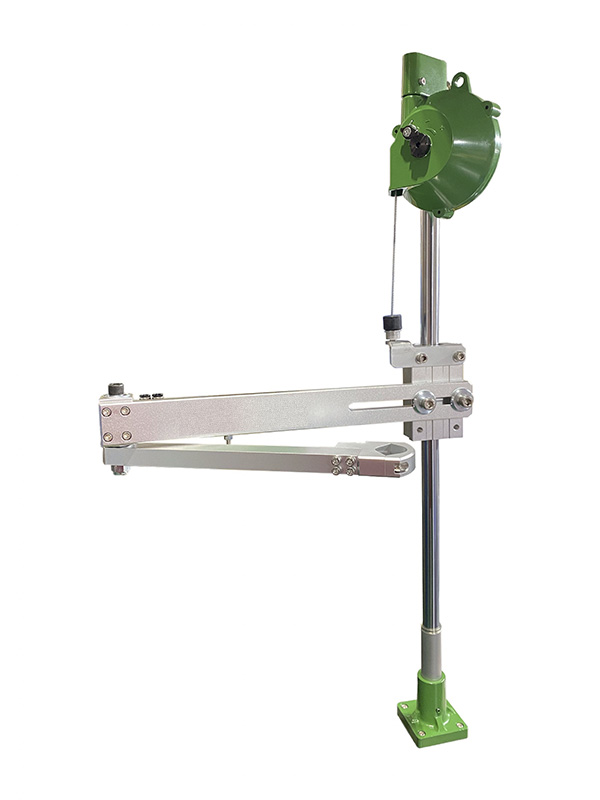

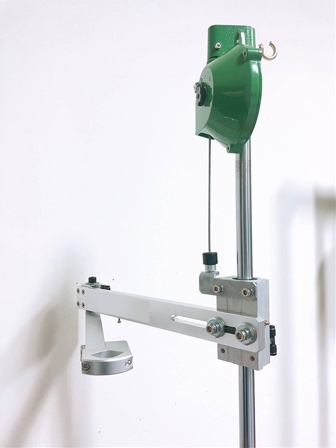

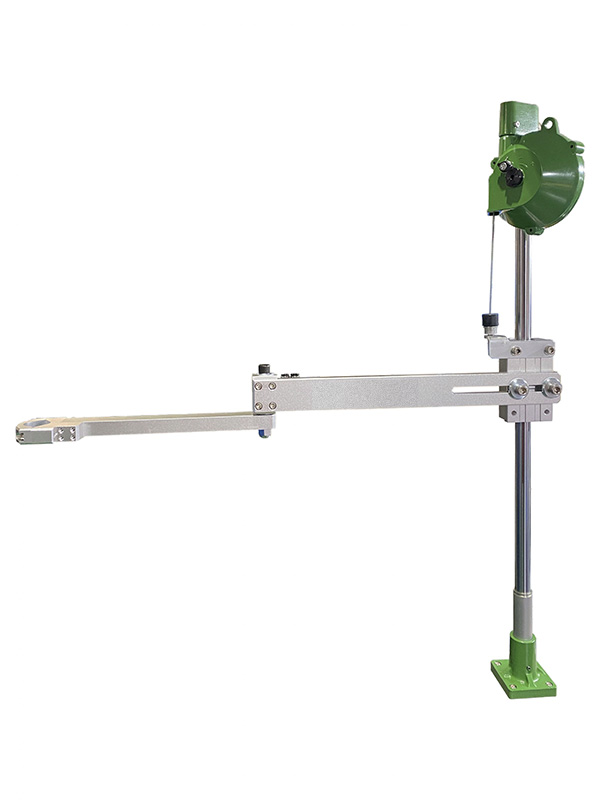

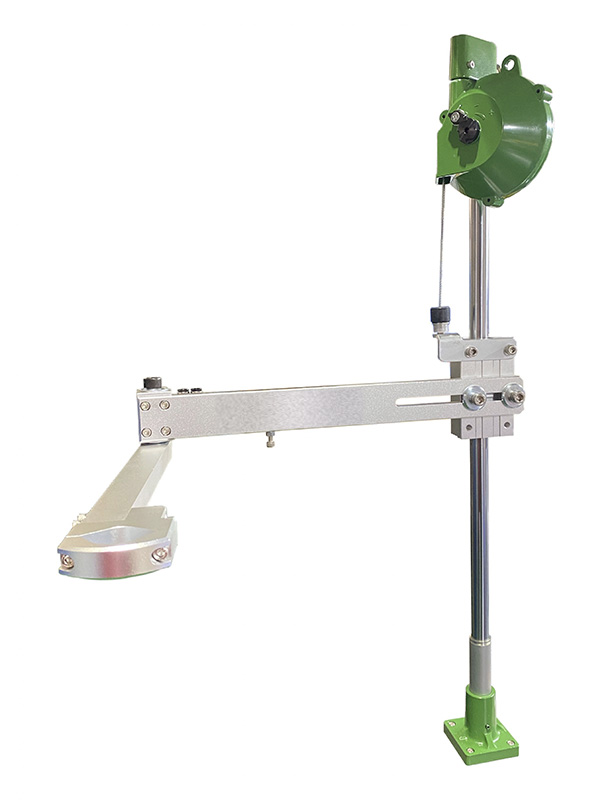

Torque Reaction Arm R650
R650 Torque Reaction Arm has a 750mm work radius from the spindle base. With 365 degree rotation, R650 provides big work area.
Meanwhile, its bendable arm design provide less conflict with other operator.
R650A is for pneumatic tools only. And, R650AE is both for electric and pneumatic screwdriver.
Meanwhile, its bendable arm design provide less conflict with other operator.
R650A is for pneumatic tools only. And, R650AE is both for electric and pneumatic screwdriver.
Feature
1. Maintains tool in a constant vertical position.
2. Exclusive height adjustment.
3. 360° swivel.
Applications

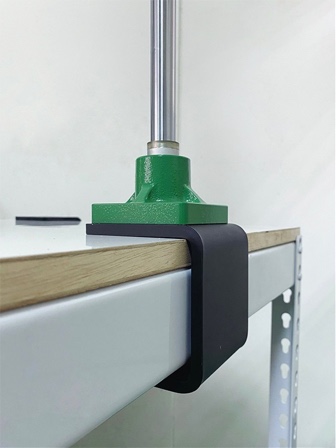

C type table clip. Automatic Screw horizontal seat (R series)
- It is designed to avoid for injuries caused by repetitive work and overusing the arm can occur in daily work activities. We provide the opportunity to implement ergonomic improvements to the manufacturing process. This torque reaction arm removes torque twisting and weight loading to create a safe work environment.
1. Maintains tool in a constant vertical position.
2. Exclusive height adjustment.
3. 360° swivel.
| Model No. | R650A | R650AE |

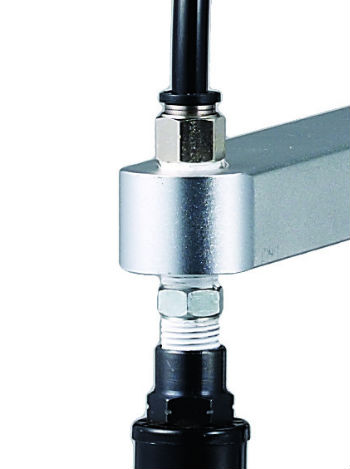

| Tool Installment | Air Connector(A Type) |

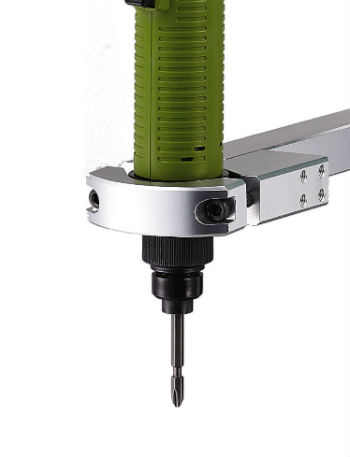

Clamp(AE Type) |
| Max. Working Area | R750 | R750 |
| Vertical Stroke | 445 mm | 445 mm |
| Screwdriver Type | Pneumatic | Electric / Pneumatic |
| Screwdriver Weight | < 1.65 kgs | < 1.45 kgs |
Applications
- Screwdriving.
- Drilling and Tapping.
- Automatic Screw Feeding.
- Impact Wrenches.
- Impact Tools.
- Pulse Tools.
- C type table clip.
- Automatic Screw horizontal seat.(R series)
C type table clip. Automatic Screw horizontal seat (R series)
