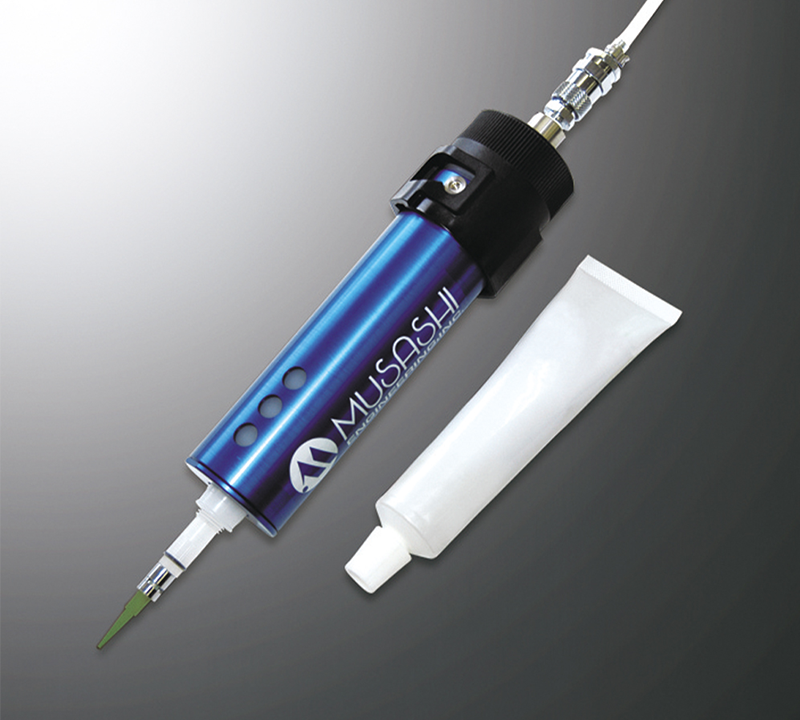

Tube cartridge Musashi CS-170CT CS-230CT
Direct dispensing from commercially available tubes
This cartridge allows users to directly set a commercially available fluid tube in this cartridge and directly perform constant volume dispensing.
This cartridge allows users to directly set a commercially available fluid tube in this cartridge and directly perform constant volume dispensing.
- CS-170CT-[]
- CS-230CT-[]
Tube cartridge (former: tube cartridge set)
Note:
1. Select one of two types of tube cartridges according to the capacity and liquid material to be used. Contact our sales department after confirming the manufacturer, material type, and capacity of the liquid tube.
2. Always applied pressure: 0.5 MPa or less.

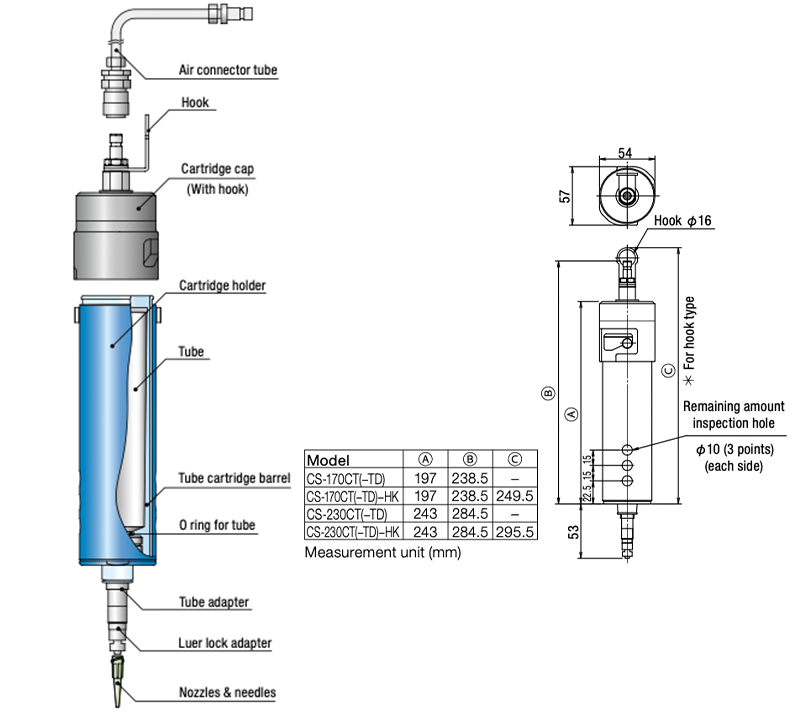

3. The tube cartridge consists of a cartridge holder, cartridge cap, tube cartridge barrel, O-ring for tube (for tube adapter),
tube adapter, O-ring (for luer lock adapter), and luer lock adapter.
| Item name | Model | Weight | Minimum Order Quantity | |
| Tube cartridge | [100 g] | CS-170CT | 378 g | 1 set |
| [100 g type TD] | CS-170CT-TD | 378 g | 1 set | |
| [100 g with hook] | CS-170CT-HK | 388 g | 1 set | |
| [100 g type TD with hook] | CS-170CT-TD-HK | 388 g | 1 set | |
| Tube cartridge | [200 g] | CS-230CT | 415 g | 1 set |
| [200 g TYPE TD] | CS-230CT-TD | 415 g | 1 set | |
| [200 g WITH HOOK] | CS-230CT-HK | 425 g | 1 set | |
| [200 g TYPE TD WITH HOOK] | CS-230CT-TD-HK | 425 g | 1 set | |
1. Select one of two types of tube cartridges according to the capacity and liquid material to be used. Contact our sales department after confirming the manufacturer, material type, and capacity of the liquid tube.
2. Always applied pressure: 0.5 MPa or less.
3. The tube cartridge consists of a cartridge holder, cartridge cap, tube cartridge barrel, O-ring for tube (for tube adapter),
tube adapter, O-ring (for luer lock adapter), and luer lock adapter.
