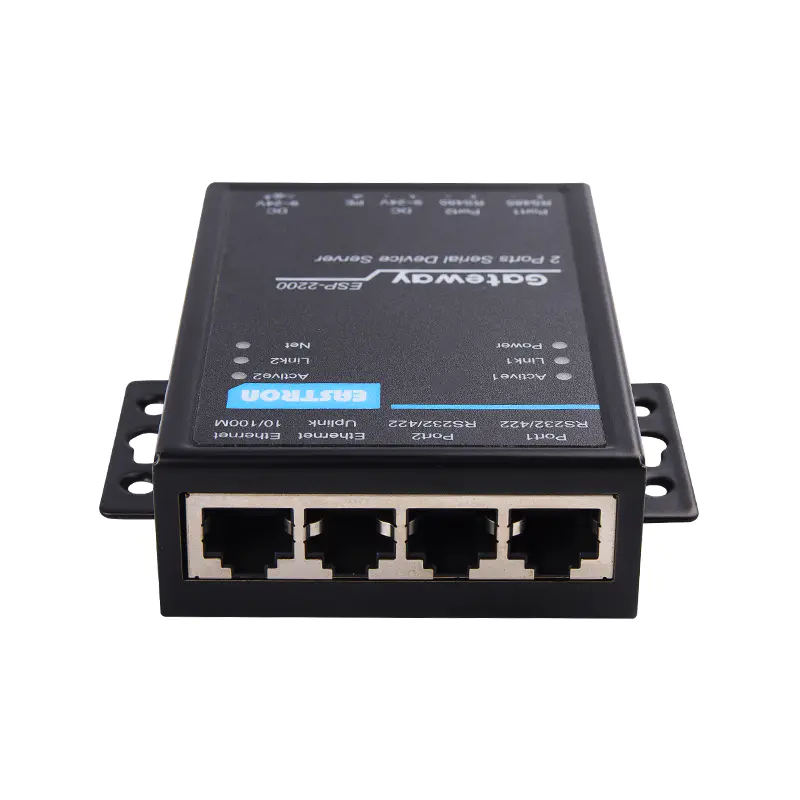

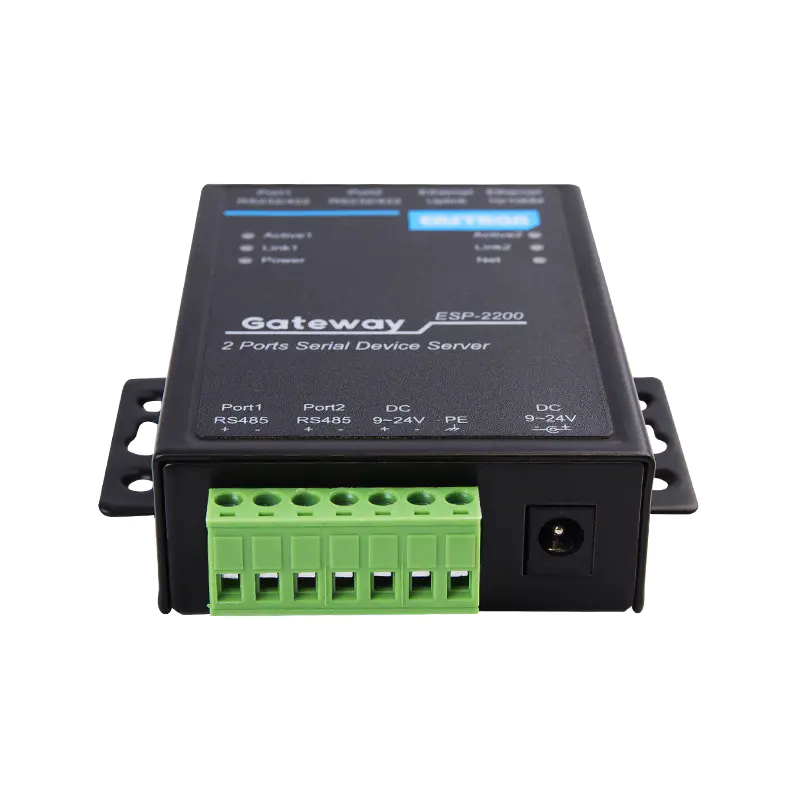

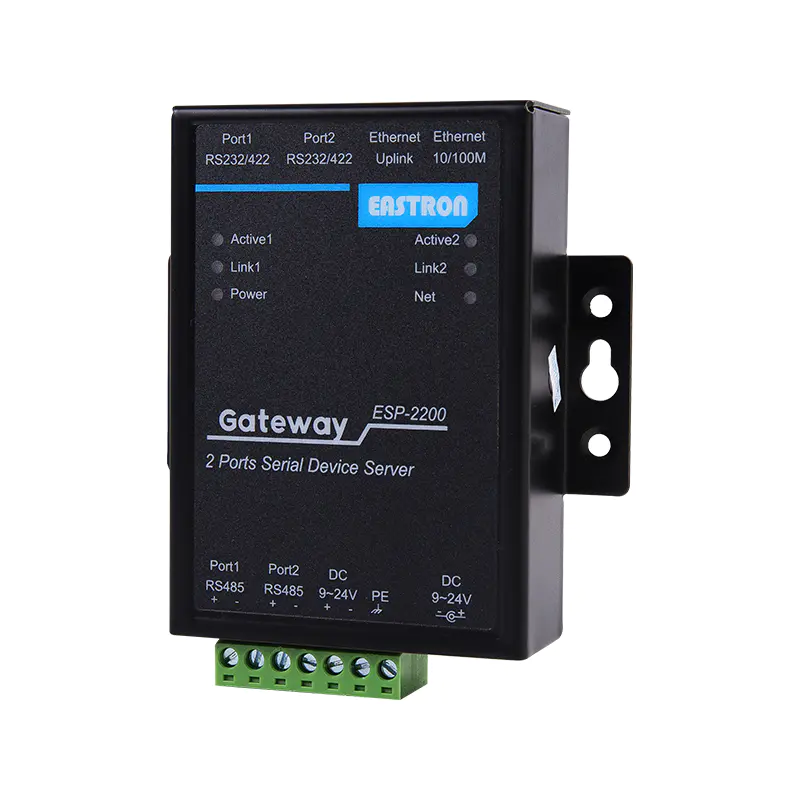

Two Rs485/232/422 Two Ethernet Ports Serial Server For Iot Solutions Eastron ESP-2200
- Modbus TCP/IP-Modbus TCP converter
- 2 channel RS232/RS422/RS485 to Ethernet Conversion
- 2 Channel 10/100M Ethernet Auto-Negotiation
- Easy Configuration Through a Web Interface or PC IOTService Tool
- Security Protocol Such As TLS/AES/DES3
- Web OTA Wirelss Upgrade
- Wide DC Input 5~36VDC
| Product parameters |
| Basic Frequency |
320MHz |
| Flash |
4MB |
| SDRAM |
8MB |
| Operating System |
eCos |
| Ethernet |
1 WAN/LAN switchable 1 LAN |
| Interface Standard |
2 RJ45 with LED |
| Rate |
10/100 Base-T Auto-Negotiation |
| Protection |
8KV Contact discharge 15KV Air discharge |
| Network Protocol |
IP, TCP, UDP, DHCP, DNS, HTTP Server/Client, ARP, BOOTP, AutoIP, ICMP, Web socket, Telnet, uPNP, NTP, Modbus TCP |
| Security Protocol |
TLSv1.2，AES- 128Bit，DES3 |
| Wi-Fi Security |
|
| Port Number |
2 RS232/RS485/RS422 |
| Interface Standard |
RS232：DB9 RS485/RS422：5.08mm |
| Data Bits |
8 |
| Stop Bit |
1 |
| Check Bit |
None，Even，Odd |
| Baud Rate |
TTL: 2400 bps~230400 bps |
| Flow Control |
No Flow control Software Xon/ Xoff flow control |
| Configuration |
Web or IOTManagerPC Software |
| Virtual Serial |
Windows XP/Vista/7/8/10(32bit\64bit)、Win Server 2003/2008/2012 |
| Size |
108 x 146 x 25 mm |
| Operating Temp. |
-25 ~ 85°C |
| Storage Temp. |
-45 ~ 105°C, 5 ~ 95% RH（no condensation） |
| Input Voltage |
5~36VDC |
| Working Current |
~200mA |
| Power |
<700mW |
| Warranty |
1 year |
| Accessory |
1* 5V/1A power adapter 1*Ethernet cables |
| Network Transformer |
integrated |
