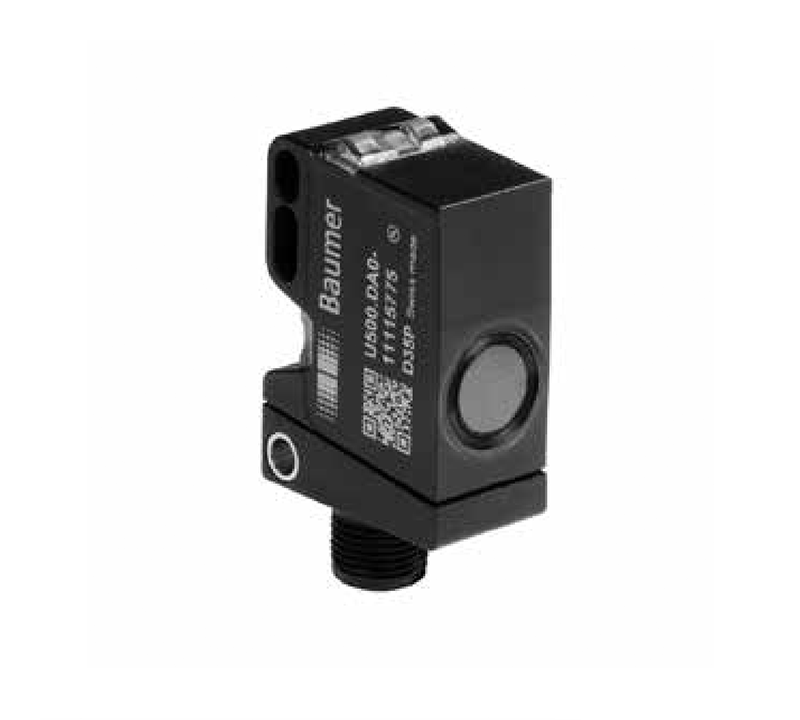

Ultrasonic distance measuring sensors Baumer U500.RA0.2-11200634
| General Data |
| Scanning range Sd |
0 ... 1000 mm |
| Reflector position Sde |
100 ... 1000 mm |
| Adjusting range reflector (operating range) |
± 2,5 % Sde |
| Adjusting range reflector (limit range) |
± 5 % Sde |
| Version |
IO-Link |
| Repeat accuracy |
< 0,5 mm |
| Temperature drift |
< 2 % Sde |
| Power-up drift |
Compensated after 15 min. |
| Response time ton |
< 40 ms |
| Release time toff |
< 40 ms |
| Sonic frequency |
200 kHz |
| Adjustment |
qTeach, line-Teach, IO-Link |
| Alignment aid |
Light indicator flashing |
| Light indicator |
LED yellow |
| Power on indication |
LED green |
| Alignment measuring axis |
< 2° |
| Electrical Data |
| Voltage supply range +Vs |
12 ... 30 VDC |
| Current consumption typ. |
35 mA |
| Output circuit |
Push-pull |
| Output current |
< 100 mA |
| Voltage drop Vd |
< 3,5 VDC |
| Residual ripple |
< 10 % Vs |
| Short circuit protection |
Yes |
| Reverse polarity protection |
Yes |
| Mechanical Data |
| Type |
Rectangular |
| Housing material |
Plastic (ASA, PMMA) |
| Width / Diameter |
18 mm |
| Height / Length |
45 mm |
| Depth |
32 mm |
| Connection types |
Connector M12 5 pin |
| Coating active face |
PEEK |
