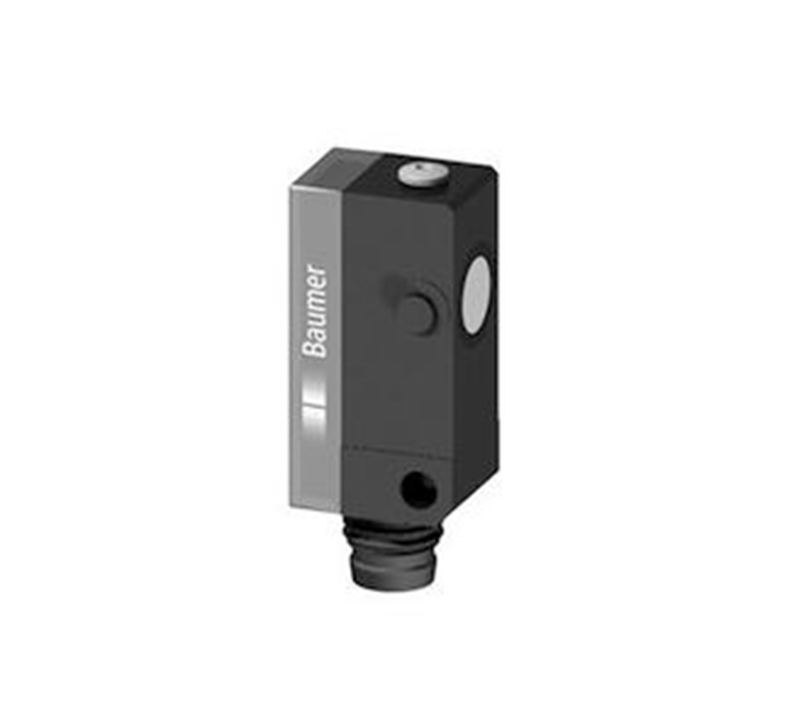

Ultrasonic distance measuring sensors Baumer UNDK 10U6914/S35A
| General Data |
| Scanning range sd |
20 ... 200 mm |
| Scanning range close limit Sdc |
20 ... 200 mm |
| Scanning range far limit Sde |
20 ... 200 mm |
| Repeat accuracy |
< 0.5 mm |
| Resolution |
< 0.3 mm |
| Response time ton |
< 60 ms |
| Release time toff |
< 60 ms |
| Temperature drift |
< 2 % of distance to target So |
| Sonic frequency |
380 kHz |
| Adjustment |
Teach-in |
| Alignment aid |
Target indication flashing |
| Light indicator |
Yellow LED / red LED |
| Electrical Data |
| Voltage supply range +Vs |
15 ... 30 VDC |
| Current consumption max. (no load) |
35 mA |
| Output circuit |
Voltage outputxw |
| Output signal |
0 ... 10 V / 10 ... 0 V |
| Output current |
< 20 mA |
| Residual ripple |
< 10 % Vs |
| Short circuit protection |
Yes |
| Reverse polarity protection |
Yes |
| Mechanical Data |
| Type |
Rectangular |
| Housing material |
Plastic (ASA) |
| Width / Diameter |
10.4 mm |
| Height / Length |
27 mm |
| Depth |
14 mm |
| Connection types |
Connector M8 |
| Ambient Conditions |
| Operating temperature |
-10 ... +60 °C |
| Protection class |
IP 67 |
