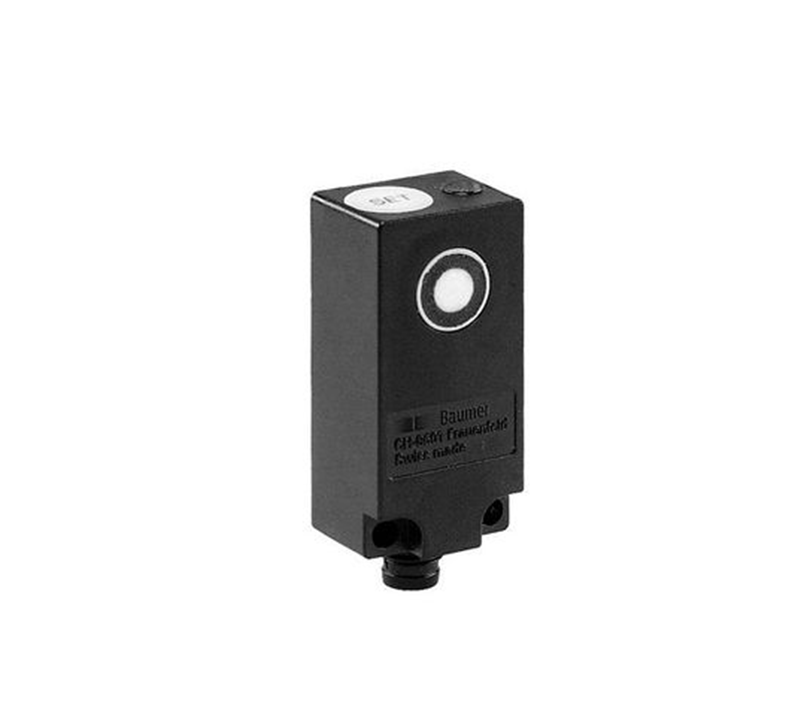

Ultrasonic distance measuring sensors Baumer UNDK 20U6912/S35A
| General Data |
| scanning range sd |
60 ... 400 mm |
| scanning range close limit Sdc |
60 ... 400 mm |
| scanning range far limit Sde |
60 ... 400 mm |
| repeat accuracy |
< 0.5 mm |
| resolution |
< 0.3 mm |
| response time ton |
< 60 ms |
| release time toff |
< 60 ms |
| temperature drift |
< 2 % of distance to target So |
| sonic frequency |
290 kHz |
| adjustment |
Teach-in |
| alignment aid |
target indication flashing |
| light indicator |
yellow LED / red LED |
| Electrical Data |
| voltage supply range +Vs |
15 ... 30 VDC |
| current consumption max. (no load) |
35 mA |
| output circuit |
voltage output |
| output signal |
0 ... 10 V / 10 ... 0 V |
| output current |
< 20 mA |
| residual ripple |
< 10 % Vs |
| short circuit protection |
yes |
| reverse polarity protection |
yes |
| Mechanical Data |
| type |
rectangular |
| housing material |
polyester |
| width / diameter |
20 mm |
| height / length |
42 mm |
| depth |
15 mm |
| connection types |
connector M8 |
| Ambient Conditions |
| operating temperature |
-10 ... +60 °C |
| protection class |
IP 67 |
