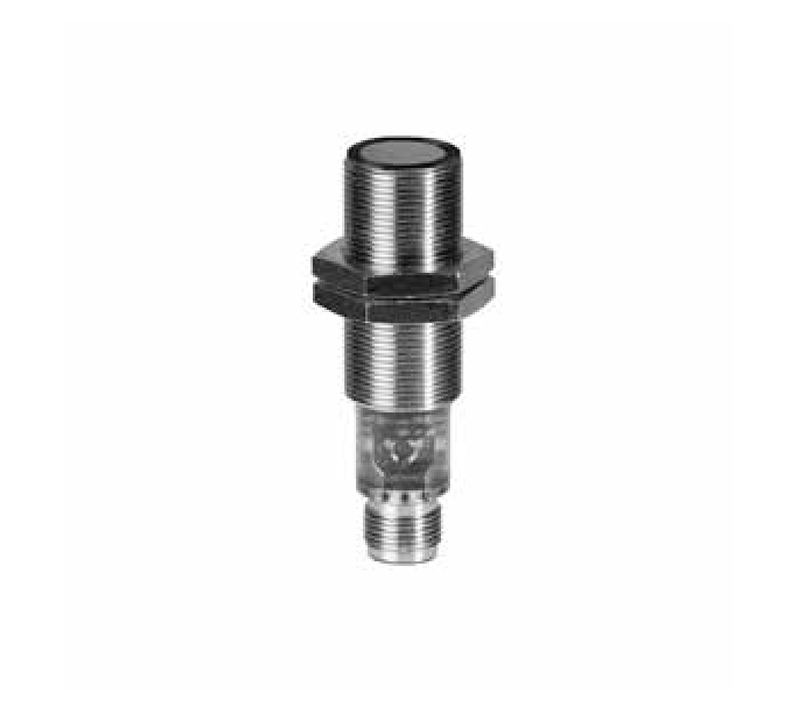

Ultrasonic distance measuring sensors Baumer UR18.PA0.2-11200645
| General Data |
| Special type |
2 point proximity switch |
| Scanning range Sd |
70 ... 1000 mm |
| Scanning range far limit Sde |
70 ... 1000 mm |
| Version |
IO-Link dual channel |
| Hysteresis typ. |
4 % Sde |
| Repeat accuracy |
< 0,5 mm |
| Temperature drift |
< 2 % Sde |
| Power-up drift |
Compensated after 15 min. |
| Response time ton |
< 40 ms |
| Release time toff |
< 40 ms |
| Sonic frequency |
200 kHz |
| Adjustment |
qTeach, line-Teach, IO-Link |
| Alignment aid |
Light indicator flashing |
| Output indicator |
Yellow LED / red LED |
| Power on indication |
LED green |
| Alignment measuring axis |
< 2° |
| Electrical Data |
| Voltage supply range +Vs |
12 ... 30 VDC |
| Current consumption typ. |
35 mA |
| Output circuit |
Push-pull |
| Output current |
< 100 mA |
| Voltage drop Vd |
< 3,5 VDC |
| Residual ripple |
< 10 % Vs |
| Short circuit protection |
Yes |
| Reverse polarity protection |
Yes |
| Mechanical Data |
| Type |
Cylindrical threaded |
| Housing material |
Stainless steel (V2A) / TR90 |
| Coating active face |
PEEK |
| Width / Diameter |
18 mm |
| Height / Length |
64 mm |
| Connection types |
Connector M12 5 pin |
