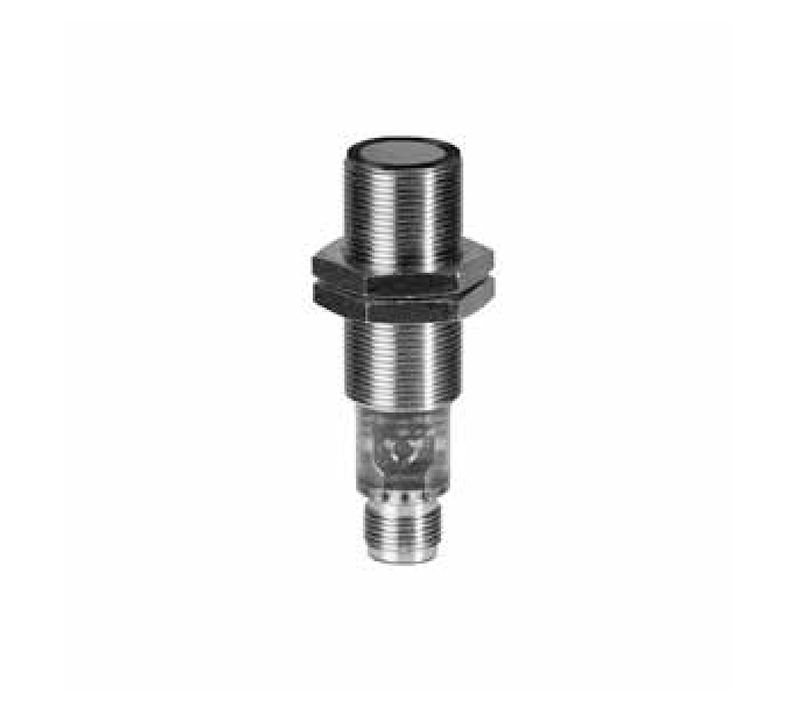

    Ultrasonic distance measuring sensors Baumer UR18.RA0.2-11200646

    General Data
    Scanning range Sd 0 ... 1000 mm
    Reflector position Sde 100 ... 1000 mm
    Adjusting range reflector (operating range) ± 2,5 % Sde
    Adjusting range reflector (limit range) ± 5 % Sde
    Version IO-Link
    Repeat accuracy < 0,5 mm
    Temperature drift < 2 % Sde
    Power-up drift Compensated after 15 min.
    Response time ton < 40 ms
    Release time toff < 40 ms
    Sonic frequency 200 kHz
    Adjustment qTeach, line-Teach, IO-Link
    Alignment aid Light indicator flashing
    Light indicator LED yellow
    Power on indication LED green
    Alignment measuring axis < 2°
    Electrical Data
    Voltage supply range +Vs 12 ... 30 VDC
    Current consumption typ. 35 mA
    Output circuit Push-pull
    Output current < 100 mA
    Voltage drop Vd < 3,5 VDC
    Residual ripple < 10 % Vs
    Short circuit protection Yes
    Reverse polarity protection Yes
    Mechanical Data
    Type Cylindrical threaded
    Housing material Stainless steel (V2A) / TR90
    Width / Diameter 18 mm
    Height / Length 64 mm
    Connection types Connector M12 5 pin
    Coating active face PEEK
