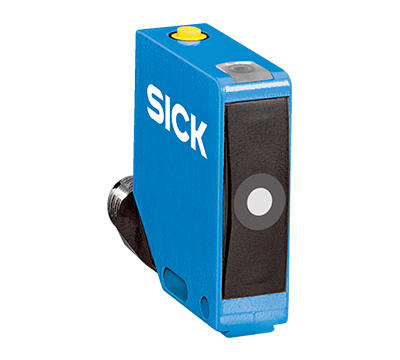

    Ultrasonic sensors Sick UC12

    Type:UC12-11231
    Part No.:6029831

    add to cart Inquiry Now
    Mechanics/electronics
    Supply voltage Vs DC 10 V ... 30 V 1)
    Power consumption ≤ 1.2 W 2)
    Initialization time < 300 ms
    Design Rectangular
    Housing material

    Metal (zinc diecast)

    Ultrasonic transducer: polyurethane foam, glass epoxy resin
    Connection type Male connector, M12, 4-pin
    Indication Dual LED
    Weight 75 g
    Sending axis Straight
    Dimensions (W x H x D) 15 mm x 48.8 mm x 43.5 mm
    Enclosure rating IP65 / IP67
    Protection class III
    • 1) Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8 A.
    • 2) Without load.

    Performance
    Operating range, limiting range 20 mm ... 150 mm, 250 mm
    Target Natural objects
    Resolution ≥ 0.1 mm
    Repeatability ± 0.15 % 1)
    Accuracy ± 1 % 2)
    Temperature compensation ✔
    Response time 30 ms
    Switching frequency 25 Hz
    Output time 8 ms
    Ultrasonic frequency (typical) 380 kHz
    Detection area (typical) See diagrams
    Additional function Set switching mode: Distance to object (DtO) / Window (Wnd) / Object between sensor and background (ObSB), teach-in of digital output, teach-in button(s) (can be deactivated), reset to factory default
    • 1) In relation to the current measured value, minimum value ≥ resolution.
    • 2) Referring to current measurement value.

    Interfaces
    Digital output
    Number 2 1)
    Type PNP
    Function Complementary digital outputs (Q, Ǭ)
    Maximum output current IA ≤ 500 mA
    Hysteresis 2 mm
    • 1) PNP: HIGH = VS - (< 2 V) / LOW = 0 V.

    Ambient data
    Ambient temperature, operation –25 °C ... +70 °C
    Ambient temperature, storage –40 °C ... +85 °C

    Classifications
    ECl@ss 5.0 27270804
    ECl@ss 5.1.4 27270804
    ECl@ss 6.0 27270804
    ECl@ss 6.2 27270804
    ECl@ss 7.0 27270804
    ECl@ss 8.0 27270804
    ECl@ss 8.1 27270804
    ECl@ss 9.0 27270804
    ECl@ss 10.0 27270804
    ECl@ss 11.0 27270804
    ECl@ss 12.0 27272806
    ETIM 5.0 EC001846
    ETIM 6.0 EC001846
    ETIM 7.0 EC001846
    ETIM 8.0 EC001846
    UNSPSC 16.0901 41111960
