Dispensing

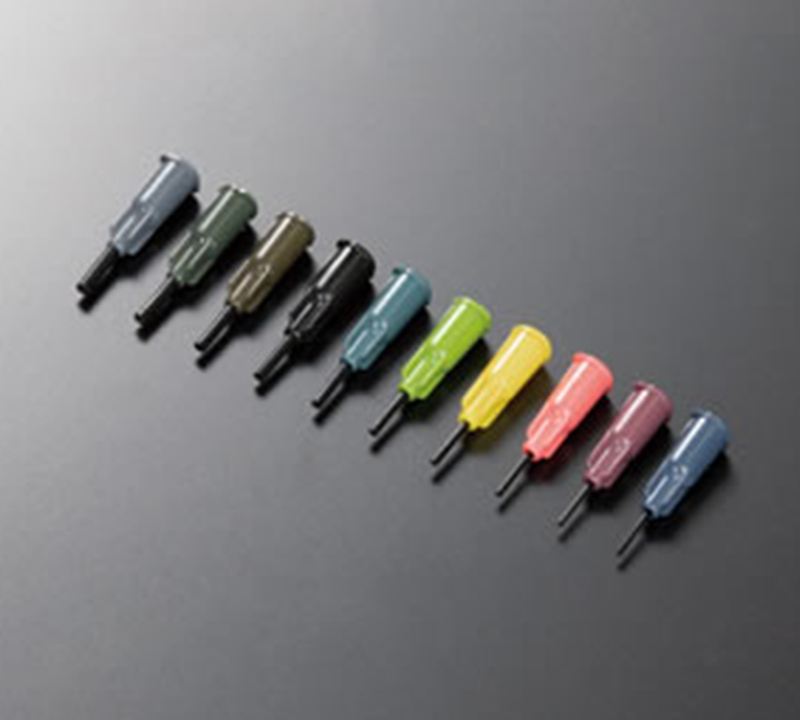

UV-block PTFE nozzle Musashi TN
Best suited for dispensing anaerobic fluid materials. Needle length can be specified
UV materials supported. Needle material: Fluorine resin Needle base material: Polyacetal
UV materials supported. Needle material: Fluorine resin Needle base material: Polyacetal
- TN-[]G-U
| Gauge | Model | Nozzle OD (φ) | Nozzle ID (φ) | Color | Minimum Order Quantity |
|---|---|---|---|---|---|
| 13 | TN-13G-U | 2.10 | 1.50 | ● Dark gray | 50 |
| 14 | TN-14G-U | 1.95 | 1.35 | ● Dark green | 50 |
| 15 | TN-15G-U | 1.79 | 1.19 | ● Olive | 50 |
| 16 | TN-16G-U | 1.67 | 1.07 | ● Black | 50 |
| 17 | TN-17G-U | 1.56 | 0.96 | ● Green | 50 |
| 18 | TN-18G-U | 1.46 | 0.86 | ● Light green | 50 |
| 19 | TN-19G-U | 1.18 | 0.68 | ● Yellow | 50 |
| 20 | TN-20G-U | 1.06 | 0.56 | ● Pink | 50 |
| 21 | TN-21G-U | 0.92 | 0.46 | ● Purple | 50 |
| 22 | TN-22G-U | 0.84 | 0.38 | ● Blue | 50 |
