ValveMate Spray Valve Controllers

ValveMate Spray Valve Controllers
These controllers feature an adjustable 0-30 psi (0-2 bar) nozzle air pressure regulator that helps to provide high transfer efficiency without overspray. They also offer time-saving programming and allow mechanical adjustments to be made without having to shut down production.

Available Models

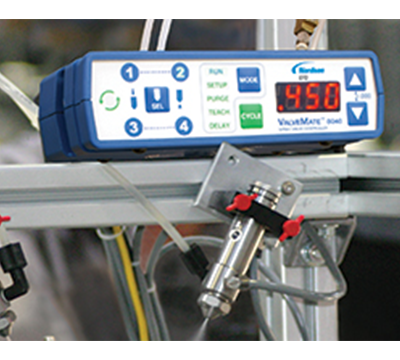

ValveMate 8040
Spray valve controller capable of operating up to two spray valves and features external solenoids.
ValveMate 7140
Spray valve controller designed for single spray valve applications and features internal solenoids. Also available: 0–100 psi (0–7 bar).

Features

• Independent, programmable actuation channels
• LVLP design for high transfer efficiency
• Cutoff air delay (0.0 to 2.5 seconds)
• Nonvolatile, power-off memory
• Fast-response pneumatic solenoids

Compatible Valves

• 781 Spray Valve
• 787 MicroSpray™ Valve

EFD spray valve controllers are simple to set up and operate, and easy to interface with PLCs and other equipment.

Part Numbers

ValveMate Spray Valve Controllers
Part #	Description	For use with
7015341	7140 Spray Valve Controller, 0-30 psi (0-2 bar)	781Mini, 781S, 784S, 787MS Valves
7015429	7140 Spray Valve Controller, 0-100 psi (0-7 bar)	781Mini, 781S, 784S, 787MS Valves
7022120	8040 Spray Valve Controller*	781Mini, 781S, 784S, 787MS Valves

For each ValveMate 8040 ordered, select the appropriate solenoid assembly for the number of spray valves used. Each solenoid kit includes the pre-wired 6 pin connector and housing, 3.6 m (12 ft) cable cordset, input air hose, and push-in fittings.


Solenoid Valve Kits
Part #	Description	For use with
7022250	Solenoid valve kit, two in-line solenoids for nozzle/actuating air.	8040 Spray Valve Controller
7022251	Solenoid valve kit, two dual blocks for nozzle/actuating air.	8040 Spray Valve Controller

Order single or dual valve solenoid assemblies separately.
