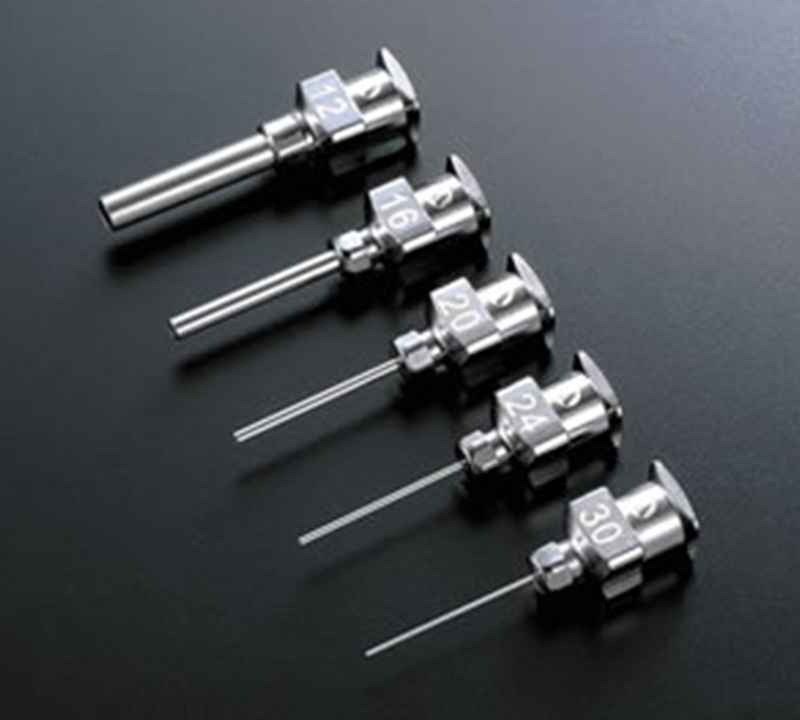

Versatile standard metal needle Musashi SNA

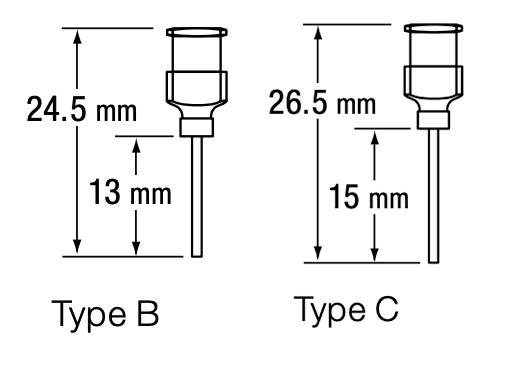

Gauge	Needle length 13 mm Model	Needle length 15 mm Model	Needle OD (ϕ)	Needle ID (ϕ)	Minimum Order Quantity
12	SNA-12G-B	SNA-12G-C	2.77	2.27	60
13	SNA-13G-B	SNA-13G-C	2.40	1.94	60
14	SNA-14G-B	SNA-14G-C	2.10	1.64	60
15	SNA-15G-B	SNA-15G-C	1.83	1.43	60
16	SNA-16G-B	SNA-16G-C	1.65	1.25	60
17	SNA-17G-B	SNA-17G-C	1.49	1.11	60
18	SNA-18G-B	SNA-18G-C	1.28	0.92	60
19	SNA-19G-B	SNA-19G-C	1.08	0.72	60
20	SNA-20G-B	SNA-20G-C	0.91	0.61	60
21	SNA-21G-B	SNA-21G-C	0.82	0.52	60
22	SNA-22G-B	SNA-22G-C	0.72	0.42	60
23	SNA-23G-B	SNA-23G-C	0.64	0.34	60
24	SNA-24G-B	SNA-24G-C	0.57	0.31	60
25	SNA-25G-B	SNA-25G-C	0.52	0.26	60
26	SNA-26G-B	SNA-26G-C	0.46	0.25	60
27	SNA-27G-B	SNA-27G-C	0.42	0.21	60
28	SNA-28G-B	SNA-28G-C	0.36	0.18	60
30	SNA-30G-B	SNA-30G-C	0.32	0.14	60
31	SNA-31G-B	SNA-31G-C	0.26	0.13	60
32	SNA-32G-B	SNA-32G-C	0.23	0.10	60

Note: For specifying needle length, the length from needle base should be notified. Contact our sales department for further information.
